Connector: PCB terminal block; terminal; 65A; 1kV; angled 90° DEGSON ELECTRONICS
Product Code: DG136T-10.16-03P

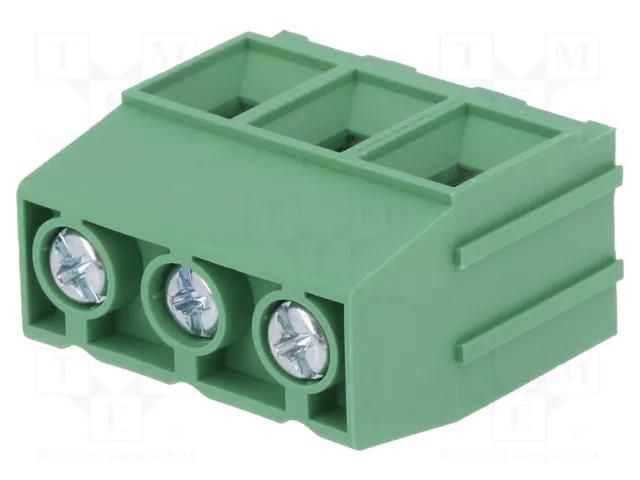

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-13 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
To €25.00 (Orders up to 1000 kgs) | For free |
Over €25.00 (Orders up to 1000 kgs) | For free |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
For free
Product description
Connector: PCB terminal block; terminal; 65A; 1kV; angled 90° DEGSON ELECTRONICS
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 65A; 1kV; angled 90°
Useful information
Supplier parameters
Product code
DG136T-10.16-03P
Supplier's product code
DG136T-10.16-03P
Product ID
U-163346
Body material
polyamide 66
Colour
green
Conform to the norm
VDE
Connector
terminal
Connector pinout layout
1x3
Connectors features
assembling possibility
Contact material
copper
Contact plating
tinned
Contacts pitch
10.16mm
Current rating
65A
Depth
18.4mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
29.3mm
Length
30.48mm
Manufacturer
DEGSON ELECTRONICS
Mechanical mounting
on PCBs
Number of ways
3
Operating temperature
-40...105°C
Rated voltage
1kV
Spatial orientation
angled 90°
Terminal pitch
10.16x10.16mm
Type of connector
PCB terminal block
Wire cross-section
2.5...16mm<sup>2</sup>
Wire size
20AWG...6AWG
Brand
DEGSON ELECTRONICS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
