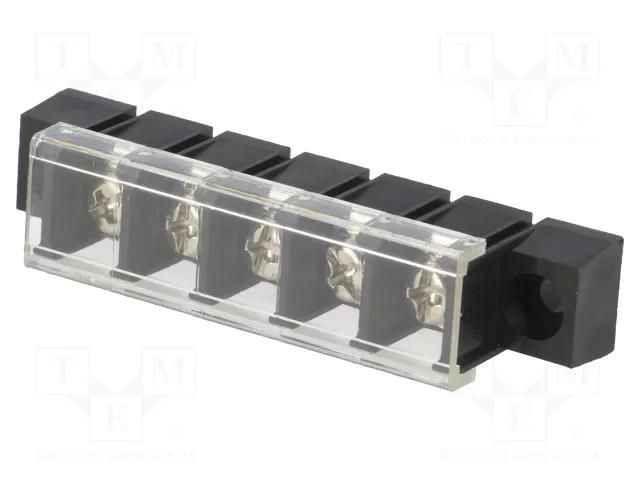

Connector: PCB terminal block; terminal; 20A; 300V; straight; 1x5 DEGSON ELECTRONICS
Product Code: DG58C-A-5P13
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-13 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
To €25.00 (Orders up to 1000 kgs) | For free |
Over €25.00 (Orders up to 1000 kgs) | For free |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
For free
Product description
Connector: PCB terminal block; terminal; 20A; 300V; straight; 1x5 DEGSON ELECTRONICS
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 20A; 300V; straight; 1x5
Useful information
Supplier parameters
Product code
DG58C-A-5P13
Body material
polyamide 66
Colour
black
Conform to the norm
UL
Connector
terminal
Connector pinout layout
1x5
Connector variant
with protection
Contact material
brass
Contact plating
tinned
Contacts pitch
10mm
Current rating
20A
Depth
15mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
19.3mm
Length
70mm
Manufacturer
DEGSON ELECTRONICS
Mechanical mounting
for panel mounting
Number of ways
5
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
straight
Type of connector
PCB terminal block
Wire cross-section
4mm<sup>2</sup>
Wire size
22AWG...12AWG
Brand
DEGSON ELECTRONICS
Supplier's product code
DG58C-A-5P13
Product ID
U-163648
