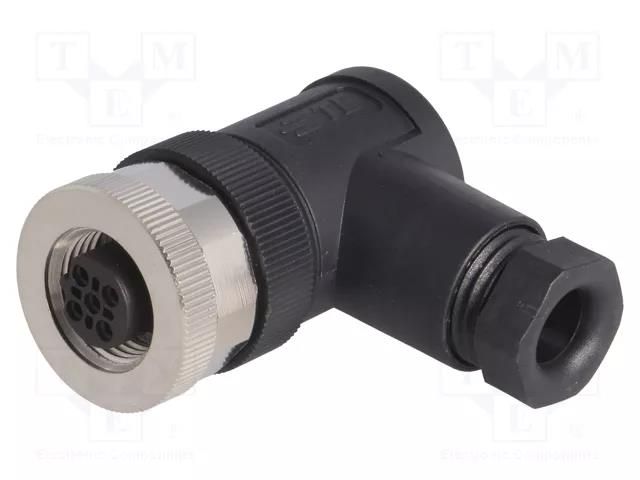

Connector: M12; plug; PIN: 5; female; 60V; angled 90°; IP67; 4A; 4÷6mm TE Connectivity
Product Code: T4112401051-000
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Connector: M12; plug; PIN: 5; female; 60V; angled 90°; IP67; 4A; 4÷6mm TE Connectivity
Useful information
Specifications
Supplier product description
Connector: M12; plug; PIN: 5; female; 60V; angled 90°; IP67; 4A; 4÷6mm
Useful information
Supplier parameters
Product code
T4112401051-000
Supplier's product code
T4112401051-000
Product ID
U-343449
Cable external diameter
4...6mm
Connector
plug
Connector variant
unshielded
Current rating
4A
Electrical mounting
screw terminal
Gland thread
PG7
IP rating
IP67
Kind of connector
female
Locking system
internal thread
Manufacturer
TE Connectivity
Mechanical mounting
for cable
Number of pins
5
Operating temperature
-40...85°C
Polarisation
B code - Profibus
Rated voltage
60V
Spatial orientation
angled 90°
Type of connector
M12
Wire size
18AWG...24AWG
Brand
TE Connectivity
