Connector: pluggable terminal block; socket; male; 11A; 300V; THT TE Connectivity
Product Code: TBG-3.5-KW-8P

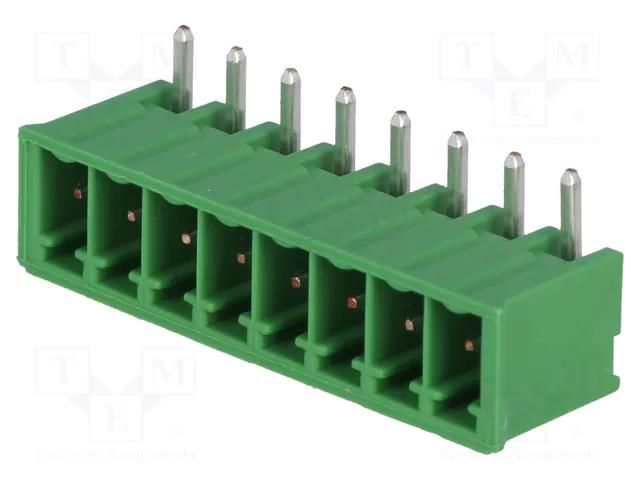

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-24 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 789 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Connector: pluggable terminal block; socket; male; 11A; 300V; THT TE Connectivity
Useful information
Specifications
Supplier product description
Connector: pluggable terminal block; socket; male; 11A; 300V; THT
Useful information
Supplier parameters
Product code
TBG-3.5-KW-8P
Supplier's product code
TBG-3.5-KW-8P
Product ID
U-346630
Body material
polyamide
Colour
green
Conform to the norm
UL
Connector
socket
Connector pinout layout
1x8
Contact material
phosphor bronze
Contact plating
tinned
Contacts pitch
3.5mm
Current rating
11A
Depth
9.2mm
Electrical mounting
THT
Flammability rating
UL94V-0
Height
7.3mm
Kind of connector
male
Length
33.5mm
Locking system
friction lock
Manufacturer
TE Connectivity
Mechanical mounting
on PCBs
Number of pins
8
Number of ways
8
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
angled 90°
Type of connector
pluggable terminal block
Brand
TE Connectivity
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
