Product description
UT195 Series Professional Multimeters
UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Models in UT195 series: UT195E, UT195M, UT195DS
Features of UT195 Series Professional Multimeters
Certificates: CE, UKCA, GS, cTUVus
● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar
Specifications of UT195 Series Professional Multimeters
|
Specifications |
Range |
UT195E |
UT195M |
UT195DS |
|
DC voltage (V) |
1000V |
±(0.5%+3) |
±(0.5%+3) |
±(0.5%+3) |
|
AC+DC |
750V |
±(0.7%+3) |
±(0.7%+3) |
±(0.7%+3) |
|
AC voltage (V) |
600V |
±(1.5%+4) |
||
|
LoZ ACV |
600V |
±(2%+3) |
±(2%+3) |
±(2%+3) |
|
DC current (A) |
20A |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
|
AC current (A) |
20A |
±(1%+3) |
±(1%+3) |
±(1%+3) |
|
Resistance (Ω) |
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
±(0.8%+2) |
|
Capacitance |
60mF |
±(3%+5) |
±(3%+5) |
±(3%+5) |
|
Frequency |
60Hz~10MHz |
±(0.1%+4) |
||
|
60Hz~40MHz |
±(0.1%+4) |
±(0.1%+4) |
||
|
Duty cycle |
0.1%~99.9% |
±(2%+5) |
N/A |
±(2%+5) |
|
Temperature (°C) |
-40°C~1000°C |
±(1.5%+4) |
||
|
Temperature (°F) |
-40°F~1832°F |
±(2%+5) |
||
|
Features |
||||
|
Display count |
6000 |
6000 |
6000 |
|
|
Display interface (LCD) |
Single |
Single |
Dual |
|
|
Measurement sampling rate |
times/s |
3 |
3 |
5 |
|
Analog bar sampling rate |
times/s |
10 |
20 |
|
|
Analog bar |
31 sections |
√ |
√ |
|
|
True RMS |
√ |
√ |
√ |
|
|
AC voltage frequency response |
45~400Hz |
45~1kHz |
45~5kHz |
|
|
AC current frequency response |
45~400Hz |
45~1kHz |
45~5kHz |
|
|
3-phase motor sequence test |
600V |
√ |
√ |
|
|
Low pass filter |
1kHz 3dB attenuation |
√ |
||
|
Diode/Continuity test |
3.5V |
3V |
3V |
|
|
Peak hold |
250μs |
√ |
||
|
Auto/Manual range |
√ |
|||
|
Continuity buzzer |
√ |
|||
|
Low battery indication |
√ |
|||
|
Data hold/Auto power off |
√ |
|||
|
MAX/MIN |
√ |
|||
|
Function selection |
√ |
|||
|
Flashlight/Auto backlight |
√ |
|||
|
General Characteristics |
||||
|
Power |
9V battery |
|||
|
LCD size |
66mm x 51mm |
|||
|
Product color |
Red and grey |
|||
|
Product net weight |
437g |
|||
|
Product size |
195mm x 95 mm x 58mm |
|||
|
Standard accessories |
Test probes, battery, carrying bag, point contact temperature probe (UT195M) |
|||
|
Standard individual packing |
Gift box, English manual |
|||
|
Standard quantity per carton |
6pcs |
|||
|
Standard carton measurement |
580mm x 375mm x 215mm |
|||
|
Standard carton gross weight |
7.2kg |
|||
Useful information
Specifications
Product description generated by artificial intelligence

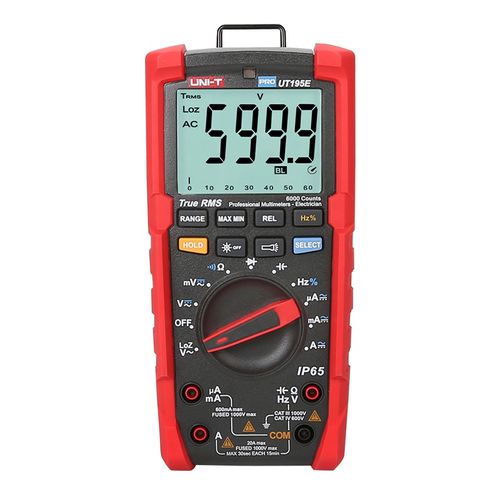

The UNI-T UT195E Professional Multimeter is a reliable, safe, and durable hand-held industrial grade digital multimeter. It is designed with IP65 rating and 2 meter drop proof. It is a multimeter of 3 5/6 digit true RMS with large multiple display screen and auto ranged. It can measure AC/DC voltage or current, resistance, diode, circuit continuity, capacitance, frequency, duty ratio, temperature (UT195M), and motor phase voltage (UT195M/UT195DS).
The UNI-T UT195E is perfect for use in petroleum, chemical and aviation, strong electromagnetic field, and other harsh working environments. This series of multimeter is German GS certified.
Why choose the UNI-T UT195E?
- IP65 rating and 2 meter drop proof
- 3 5/6 digit true RMS
- Large multiple display screen
- Auto ranged
- Measures AC/DC voltage or current, resistance, diode, circuit continuity, capacitance, frequency, duty ratio, temperature (UT195M), and motor phase voltage (UT195M/UT195DS)
- German GS certified
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
