Product description

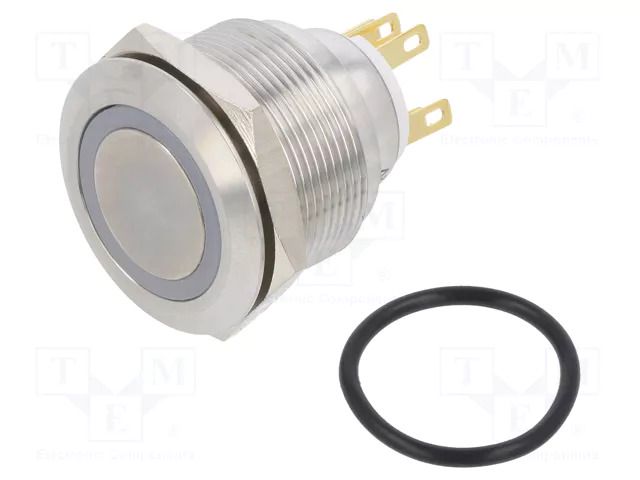

Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65 ONPOW
Specifications
Supplier product description
Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Supplier parameters
Product code
LAS1GQ25-11EY12VS
Supplier's product code
LAS1GQ25-11EY12VS
Product ID
U-1921819
AC contacts rating @R
3A / 220V AC
Actuator colour
silver
Backlight colour
yellow
Body colour
silver
Body material
stainless steel
Button shape
flat
Contact material
silver alloy
Contacts configuration
SPDT
DC contacts rating @R
5A / 24V DC
Electrical life
50000 cycles
Illumination
LED
Illumination voltage
12V
IP rating
IP65
Leads
connectors
Leads dimensions
2.8x0.5mm
Manufacturer
ONPOW
Manufacturer series
LAS1GQ22
Max. contact resistance
:50mΩ
Mechanical durability
1000000 cycles
Min. insulation resistance
1GΩ
Mounting hole diameter
Ø25mm
Number of positions
2
Operating Force
4N
Operating temperature
-25...55°C
Ring shape
rounded
Stable positions number
1
Switching method
ON-(ON)
Test voltage
1.5kV
Type of switch
vandal resistant
Brand
ONPOW
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
