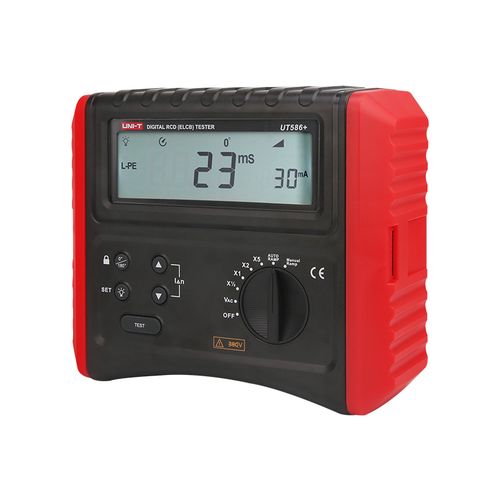

Specification

Rate trigger current

Fault trigger time

Accuracy
(current)

Accuracy
(time)

RCD test function

X1/2

10/20/30/100/300/500mA/1000mA

0~2000mS @  0°/180°

 -10%~0%”

±0.6%rdg±4dgt

X1

10/20/30/100/300mA

0~2000mS @  0°/180°

0%~+10%

±0.6%rdg±4dgt

500mA/1000mA

0~200mS @  0°/180°

0%~+10%

±0.6%rdg±4dgt

X2

10/20/30/100/200/300/500mA

0~200mS @  0°/180°

0%~+10%

±0.6%rdg±4dgt

X5

10/20/30/100/200mA

0~200mS @  0°/180°

0%~+10%

±0.6%rdg±4dgt

AUTO

 10/20/30/100/300/500mA/1000mA

300ms @ 15 0°/180°

-10%~+10%

±0.6%rdg±4dgt

Manual

 10/20/30/100/300/500mA/1000mA

300ms @ 0°/180°

-10%~+10%

±0.6%rdg±4dgt

Working voltage

 50/60Hz

100V~440V
(Note: If > 450V, it will issue an alarm and stop the RCD test)

-15%~+10%

Voltage test

Voltage range

30~480V (Resolution: 1V)

45~65Hz

±3%rdg±3dgt

Voltage test

L-PE

yes, display the L-PE input voltage;
range: 30V~480V; No input and low voltage: “0V”;
if less than 30V: <30V; if  more than 4800v: >480V

Frequency

yes, display the L-PE input frequency;
when it is “volts”, press “VOLT/FREQ” key to switch “Voltage/Frequency”

Wiring check

If there is no wiring, an abnormal power supply, or no electricity flowing, the LCD will display “L-PE” and flash.

Phase angle selection

You can choose to initiate the test from the positive (0°) or the negative (180°) half-cycle. Press the “0°/180°” button to toggle phase.

Lock test

 With the power disconnected, press and hold the “0°/180°” button to activate the lock test function. Simply connect the test leads correctly to the test points, and the test will run automatically.

AUTO RAMP test

You can test the trip action current and action time simultaneously.

RCD test exceeds limit prompt

 When the trip action time exceeds the maximum test duration and trips.

Over-temperature detection

 If the internal components of the device become too hot, the LCD will display an over-temperature symbol, and the device will automatically disable RCD testing.

Backlight

Yes, can be turn on/off

Low battery indication

yes

Auto powwer off

After 5 minutes of no operation, it will automatically shut down.

Working environment

0℃~40℃

Storage environment

 -20℃~60℃

Power

8 * 1.5V AA

Polution level

2

Safety rating

IEC61010-031; IEC61557-1,6; CAT III 600V

General Features

Product color

Red + gray

Product weight

725g

Product dimension

161*117*68mm

Standard accessories

User manual 1pcs; Test lead 1 set(red/green); Alligator clips 2pcs(red/green); Test probe 2pcs(red/green); 1.5V AA * 8pcs; Test lead to EU plug 1pcs

Standard package

Carton box: 4pcs

Package dimension

585×380×335mm
