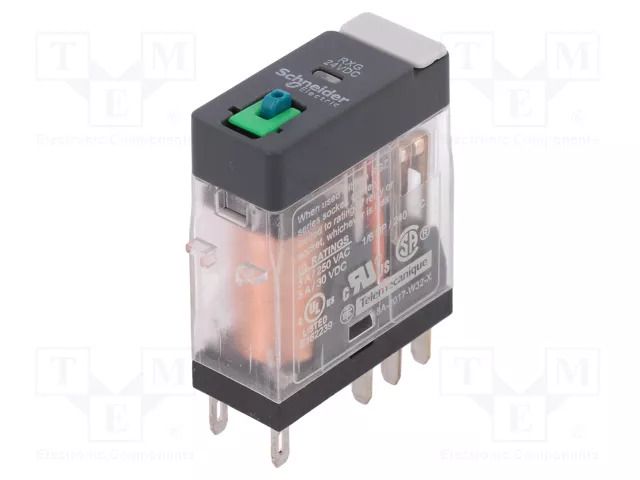

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; 5A/250VAC; 5A/30VDC SCHNEIDER ELECTRIC
Product Code: RXG21BD
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; 5A/250VAC; 5A/30VDC SCHNEIDER ELECTRIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; 5A/250VAC; 5A/30VDC
Useful information
Supplier parameters
Product code
RXG21BD
AC contacts rating @R
5A / 250V AC
Body dimensions
29x36.5x13mm
Coil power consumption
530mW
Contact current max.
5A
Contact material
AgSnO<sub>2</sub>In<sub>2</sub>O<sub>3</sub>
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
5A / 30V DC
Manufacturer
SCHNEIDER ELECTRIC
Manufacturer series
RXG
Mounting
socket
Operating temperature
-40...70°C
Optional equipment
test button with blocking function
Rated coil voltage
24V DC
Relay variant
miniature
Related items
RGZE1S48M
Switched voltage
max. 30V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Trade name
Zelio Relay
Brand
SCHNEIDER ELECTRIC
Supplier's product code
RXG21BD
Product ID
U-316292
