Product description

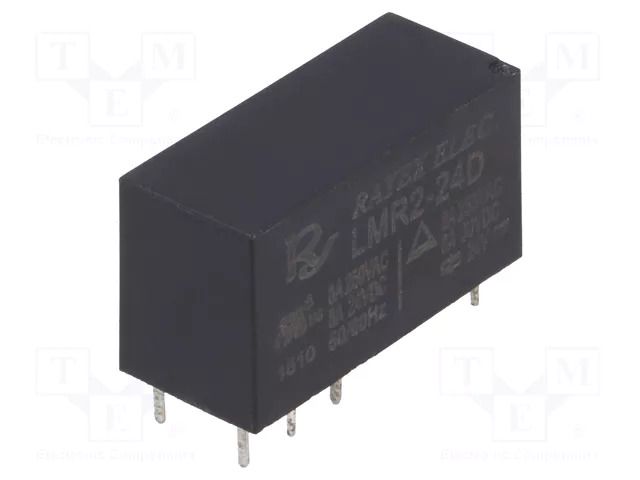

Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 5A; LMR2 Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 5A; LMR2
Useful information
Supplier parameters
Product code
LMR2-24D
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LMR2-24D
Product ID
U-240356
AC contacts rating @R
5A / 250V AC
Body dimensions
29x15.5x12.5mm
Coil current
21.8mA
Coil power consumption
530mW
Coil resistance
1.1kΩ
Contact current max.
5A
Contact material
AgCdO
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
5A / 30V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Manufacturer series
LMR2
Mounting
PCB
Operate time
15ms
Operating temperature
-40...80°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
5mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
