Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; P2; SMT TE Connectivity
Product Code: V23079D2001B301

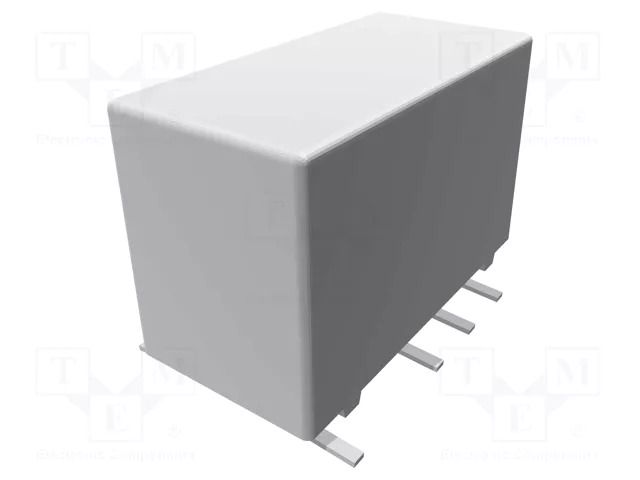

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; P2; SMT TE Connectivity
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; P2; SMT
Useful information
Supplier parameters
Product code
V23079D2001B301
Brand
TE Connectivity
Supplier's product code
V23079D2001B301
Product ID
U-373651
AC contacts rating @R
0.5A / 125V AC
Body dimensions
14.5x7.2x9.8mm
Coil power consumption
140mW
Coil resistance
178Ω
Coil voltage max.
10.9V DC
Coil voltage min.
3.75V DC
Contact current max.
2A
Contacts configuration
DPDT
DC contacts rating @R
2A / 30V DC
Design
single coil
Manufacturer
TE Connectivity
Manufacturer series
P2
Mounting
SMT
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Relay variant
miniature
Switched voltage
max. 220V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
