Product description

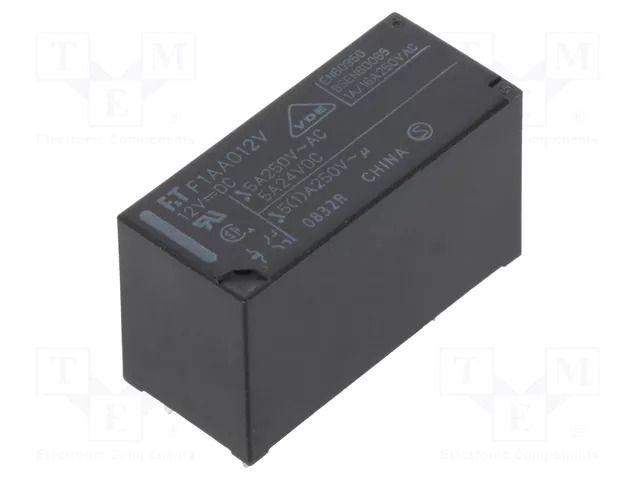

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB FCL Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
Useful information
Supplier parameters
Product code
FTR-F1AA012V
Brand
FCL Components
Supplier's product code
FTR-F1AA012V
Product ID
U-1929953
AC contacts rating @R
5A / 250V AC
Body dimensions
29x12.8x16.5mm
Coil power consumption
530mW
Coil resistance
270Ω
Coil voltage max.
19.8V AC
Coil voltage min.
8.4V DC
Contact current max.
5A
Contact material
AgSnO<sub>2</sub>
Contact plating
gold-plated
Contact resistance
100mΩ
Contacts configuration
DPST-NO
DC contacts rating @R
5A / 24V DC
Manufacturer
FCL Components
Manufacturer series
FTR-F1
Mounting
PCB
Operate time
15ms
Operating temperature
-40...75°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 300V DC
Terminal pitch
5mm
Type of relay
electromagnetic
