Product description

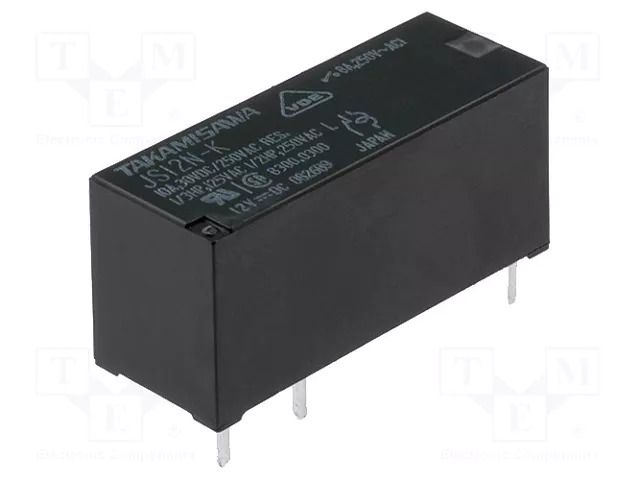

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC FCL Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC
Useful information
Supplier parameters
Product code
JS-12N-K
Brand
FCL Components
Supplier's product code
JS-12N-K
Product ID
U-224386
AC contacts rating @R
8A / 250V AC
Body dimensions
29x10x12.5mm
Coil power consumption
220mW
Coil resistance
660Ω
Coil voltage max.
28.3V DC
Coil voltage min.
8.5V DC
Contact current max.
8A
Contact material
AgSnO<sub>2</sub>
Contact plating
gold-plated
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
8A / 24V DC
Manufacturer
FCL Components
Manufacturer series
JS
Mounting
PCB
Operate time
10ms
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 150V DC
Terminal pitch
3.2mm
Type of relay
electromagnetic
