Product description

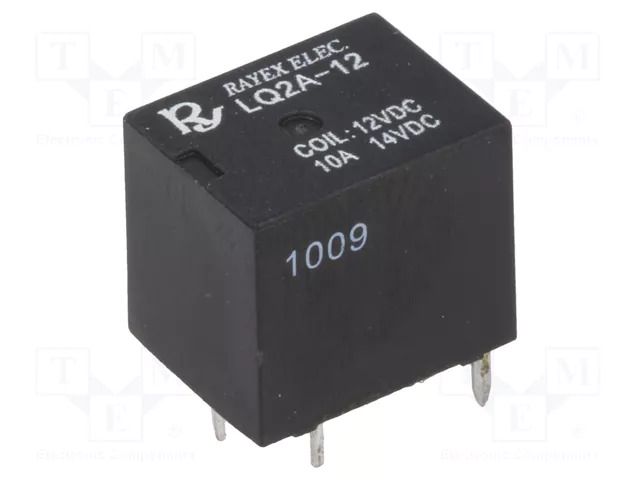

Relay: electromagnetic; SPST-NO DM; Ucoil: 12VDC; 10A; automotive Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO DM; Ucoil: 12VDC; 10A; automotive
Useful information
Supplier parameters
Product code
LQ2A-12
Supplier's product code
LQ2A-12
Product ID
U-241984
Body dimensions
16x12.5x14mm
Coil current
66.7mA
Coil resistance
180Ω
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
SPST-NO DM
DC contacts rating @R
10A / 14V DC
Electrical life
100000 cycles
Leads
for PCB
Manufacturer
Recoy/RAYEX ELECTRONICS
Manufacturer series
LQ
Mechanical durability
10000000 cycles
Mounting
PCB
Operate time
7.2ms
Operating temperature
-30...85°C
Rated coil voltage
12V DC
Relay variant
automotive
Release time
1.2ms
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
