Product description

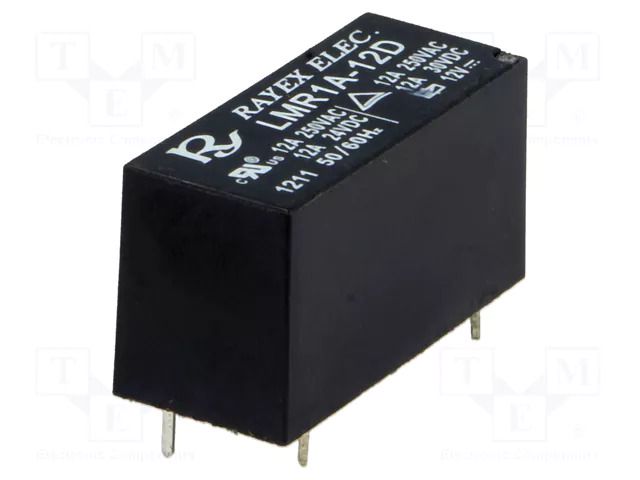

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 12A; 12A/250VAC Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 12A; 12A/250VAC
Useful information
Supplier parameters
Product code
LMR1A-12D
AC contacts rating @R
12A / 250V AC
Body dimensions
29x12.5x15.5mm
Coil power consumption
530mW
Coil resistance
270Ω
Contact current max.
12A
Contact material
AgCdO
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
12A / 30V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Manufacturer series
LMR1
Mounting
PCB
Operate time
15ms
Operating temperature
-40...80°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
3.5mm
Type of relay
electromagnetic
Supplier's product code
LMR1A-12D
Product ID
U-240344
Brand
Recoy/RAYEX ELECTRONICS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
