Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB ZETTLER
Product Code: AZ9371-1A-12D

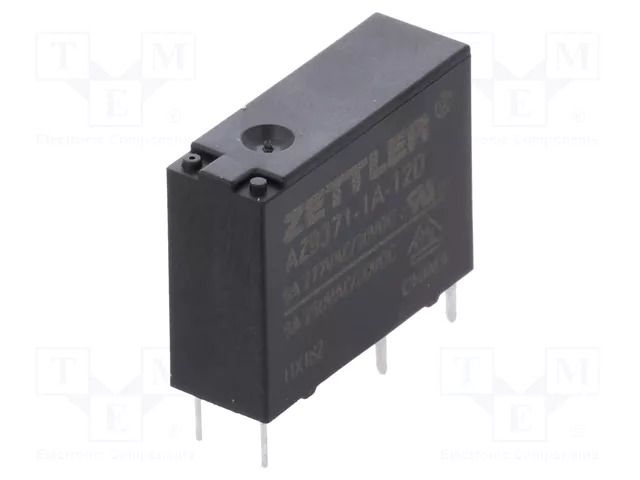

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-08 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3022 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB ZETTLER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
Useful information
Supplier parameters
Product code
AZ9371-1A-12D
AC contacts rating @R
5A / 250V AC
Body dimensions
20.5x7.2x15.3mm
Coil power consumption
113mW
Coil resistance
720Ω
Contact current max.
5A
Contact material
AgNi
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
ZETTLER
Manufacturer series
AZ9371
Mounting
PCB
Operate time
6ms
Operating temperature
-40...105°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
3ms
Switched voltage
max. 30V DC
Terminal pitch
7mm
Type of relay
electromagnetic
Brand
ZETTLER
Supplier's product code
AZ9371-1A-12D
Product ID
U-121360
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
