Product description

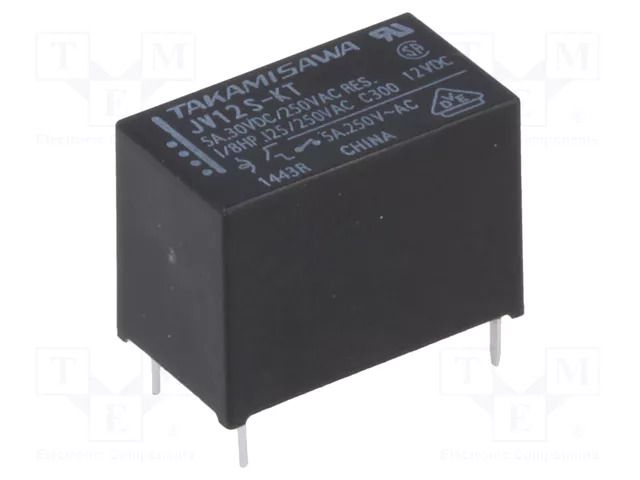

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; JV FCL Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; JV
Useful information
Supplier parameters
Brand
FCL Components
Supplier's product code
JV-12S-KT
Product ID
U-224539
AC contacts rating @R
5A / 250V AC
Body dimensions
17.5x10x12.5mm
Coil power consumption
200mW
Coil resistance
720Ω
Coil voltage min.
9V DC
Contact current max.
5A
Contact material
AgNi + Au
Contact resistance
70mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
FCL Components
Manufacturer series
JV
Mounting
PCB
Operate time
8ms
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
4ms
Switched voltage
max. 150V DC
Terminal pitch
6.35mm
Type of relay
electromagnetic
Product code
JV-12S-KT
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
