Product description

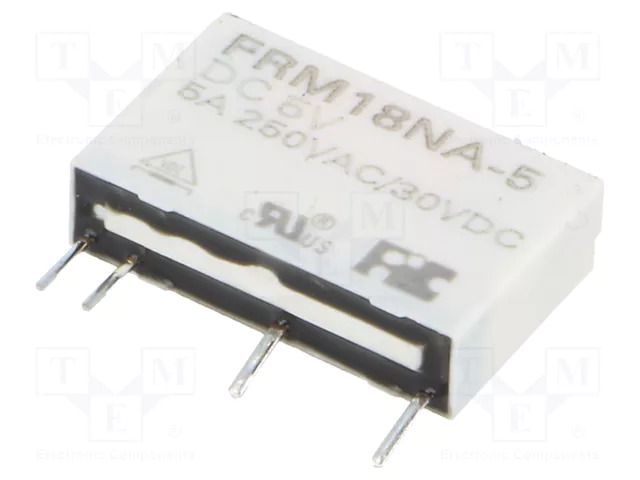

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A FORWARD INDUSTRIAL CO.
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A
Useful information
Supplier parameters
Product code
FRM18NA-5VDC
Brand
FORYARD
Supplier's product code
FRM18NA-5VDC
Product ID
U-192033
AC contacts rating @R
5A / 250V AC
Body dimensions
20x12.5x5mm
Coil current
24mA
Coil power consumption
120mW
Coil resistance
208Ω
Contact current max.
5A
Contact material
silver alloy
Contact resistance
50mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
FORWARD INDUSTRIAL CO.
Manufacturer series
FRM18
Mechanical durability
20000000 cycles
Mounting
PCB
Operating temperature
-40...70°C
Rated coil voltage
5V DC
Relay variant
interface
Switched voltage
max. 110V DC
Terminal pitch
7.62mm
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
