Product description

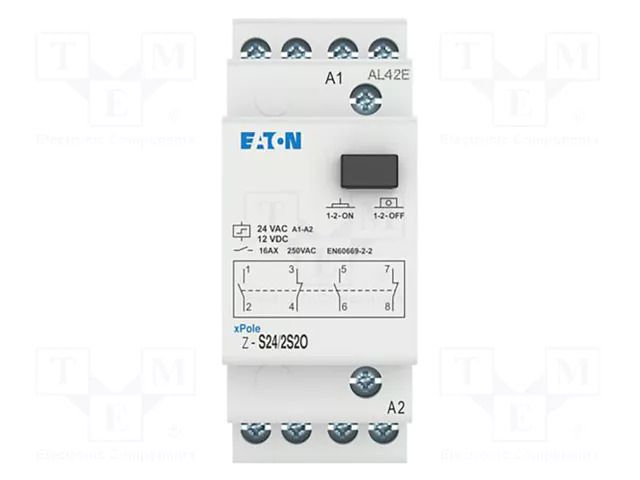

Relay: installation; bistable,impulse; NC x2 + NO x2; 35x90x60mm EATON ELECTRIC
Useful information
Specifications
Supplier product description
Relay: installation; bistable,impulse; NC x2 + NO x2; 35x90x60mm
Useful information
Supplier parameters
Product code
Z-S24/2S2O
Product ID
U-391569
Body dimensions
35x90x60mm
Contact voltage, max.
250V AC
Contacts configuration
NC x2 + NO x2
IP rating
IP20
Leads
screw terminals
Manufacturer
EATON ELECTRIC
Manufacturer series
Z-S
Max. operating current
16A
Mounting
for DIN rail mounting
number of operation modes
1
Operating temperature
-20...45°C
Rated coil voltage
12V DC
Relay variant
bistable
Related items
Z-S/KO
Type of relay
installation
Brand
EATON ELECTRIC
Supplier's product code
Z-S24/2S2O
