Relay: installation; bistable,impulse; NO; Ucoil: 24VAC,24VDC ZAMEL
Product Code: PBM-01/24V

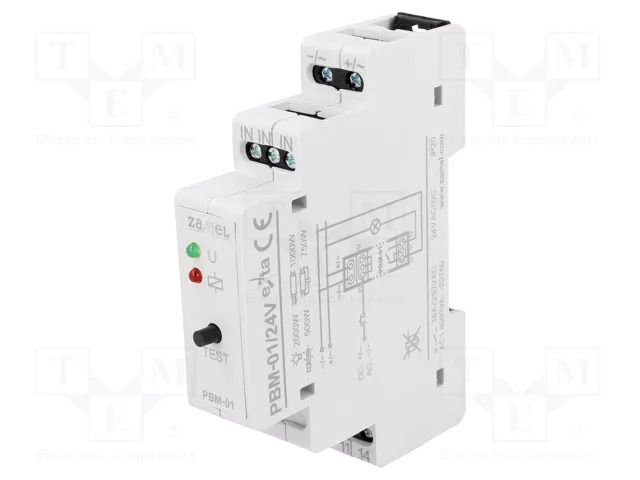

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-10-29 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 10 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Relay: installation; bistable,impulse; NO; Ucoil: 24VAC,24VDC ZAMEL
Useful information
Specifications
Supplier product description
Relay: installation; bistable,impulse; NO; Ucoil: 24VAC,24VDC
Useful information
Supplier parameters
Product code
PBM-01/24V
Brand
ZAMEL
Supplier's product code
PBM-01/24V
Product ID
U-284738
Body dimensions
90x17.5x66mm
Contacts configuration
NO
Indication
LED
IP rating
IP20
Leads
screw terminals
Manufacturer
ZAMEL
Manufacturer series
PBM
Max. operating current
16A
Mounting
for DIN rail mounting
Operating temperature
-20...45°C
Rated coil voltage
24V DC
Relay features
remote control
Relay variant
bistable
Switched voltage
max. 250V AC
Switching method
OFF-ON
Type of relay
installation
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
