Product description

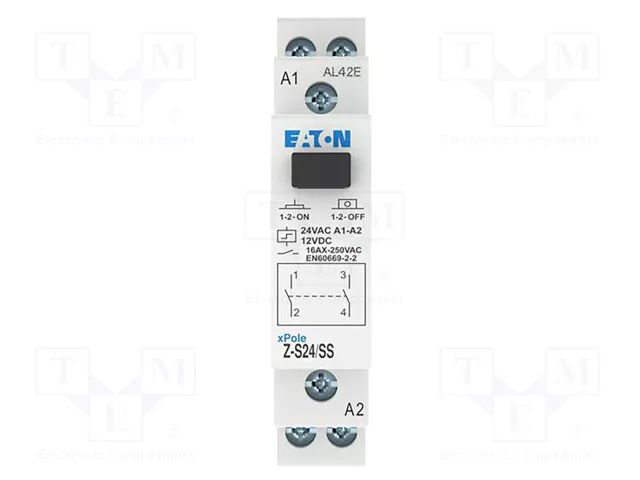

Relay: installation; bistable,impulse; NO x2; Ucoil: 24VAC,12VDC EATON ELECTRIC
Useful information
Specifications
Supplier product description
Relay: installation; bistable,impulse; NO x2; Ucoil: 24VAC,12VDC
Useful information
Supplier parameters
Product code
Z-S24/SS
Product ID
U-391572
Body dimensions
17.5x90x60mm
Contact voltage, max.
250V AC
Contacts configuration
NO x2
IP rating
IP20
Leads
screw terminals
Manufacturer
EATON ELECTRIC
Manufacturer series
Z-S
Max. operating current
16A
Mounting
for DIN rail mounting
number of operation modes
1
Operating temperature
-20...45°C
Rated coil voltage
12V DC
Relay variant
bistable
Related items
Z-S/KO
Type of relay
installation
Brand
EATON ELECTRIC
Supplier's product code
Z-S24/SS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
