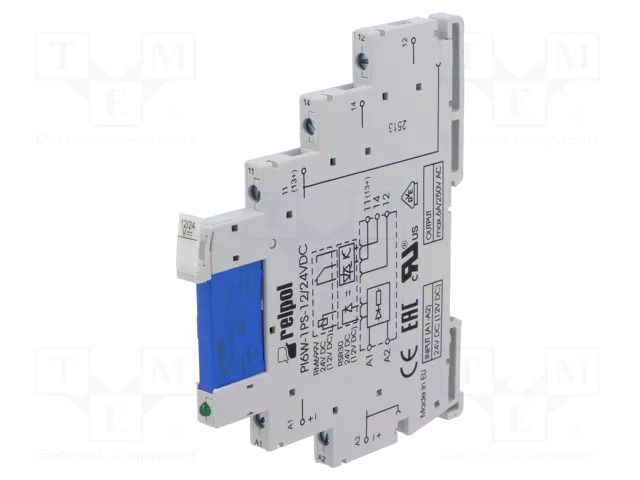

Relay: interface; SPST; Ucoil: 24VDC; 2A; 2A/32VDC; PIR6W-1PS; IP20 RELPOL
Product Code: PIR6W-1PS-24VDC-O
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Relay: interface; SPST; Ucoil: 24VDC; 2A; 2A/32VDC; PIR6W-1PS; IP20 RELPOL
Specifications
Supplier product description
Relay: interface; SPST; Ucoil: 24VDC; 2A; 2A/32VDC; PIR6W-1PS; IP20
Supplier parameters
Product code
PIR6W-1PS-24VDC-O
Brand
RELPOL
Supplier's product code
PIR6W-1PS-24VDC-O
Product ID
U-4629492
Body dimensions
98.5x6.2x85.5mm
Coil power consumption
300mW
Contact current max.
2A
Contacts configuration
SPST
DC contacts rating @R
2A / 32V DC
IP rating
IP20
Manufacturer
RELPOL
Manufacturer series
PIR6W-1PS
Mounting
for DIN rail mounting
Operate time
50µs
Operating temperature
-20...55°C
Rated coil voltage
24V DC
Relay variant
Relay set
Release time
0.6ms
Switched voltage
max. 32V DC
Type of relay
interface
