Product description

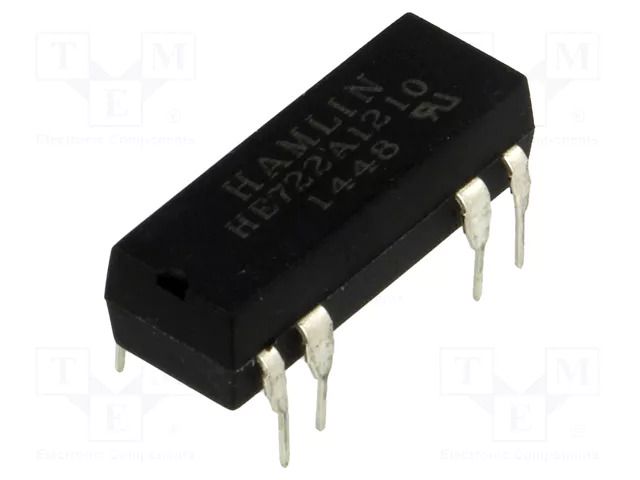

Relay: reed switch; DPST-NO; Ucoil: 12VDC; max.200VDC; Rcoil: 500Ω LITTELFUSE
Useful information
Specifications
Supplier product description
Relay: reed switch; DPST-NO; Ucoil: 12VDC; max.200VDC; Rcoil: 500Ω
Useful information
Supplier parameters
Product code
HE722A1210
Supplier's product code
HE722A1210
Product ID
U-202652
Body dimensions
5.5x7.22x19.05mm
Case
DIP
Coil power consumption
288mW
Coil resistance
500Ω
Coil voltage max.
22V DC
Coil voltage min.
8V DC
Contact resistance
0.15Ω
Contacts configuration
DPST-NO
Manufacturer
LITTELFUSE
Manufacturer series
HE700
Mounting
PCB
Operating temperature
-40...85°C
Optional equipment
overvoltage damping diode
Rated coil voltage
12V DC
Switched voltage
max. 200V DC
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
LITTELFUSE
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
