Product description

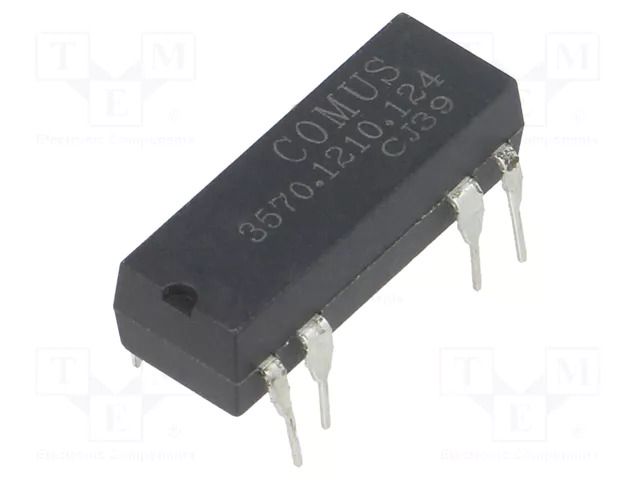

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W COMUS
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Useful information
Supplier parameters
Product code
3570.1210.124
Supplier's product code
3570.1210.124
Product ID
U-83720
Body dimensions
19.5x6.9x6.9mm
Case
DIP14
Coil resistance
1kΩ
Coil voltage max.
16V DC
Coil voltage min.
9V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COMUS
Manufacturer series
3570
Mounting
THT
Operating temperature
-20...85°C
Optional equipment
diode
Rated coil voltage
12V DC
Switched voltage
max. 150V DC
Switching capacity
10W
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
COMUS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
