Product description

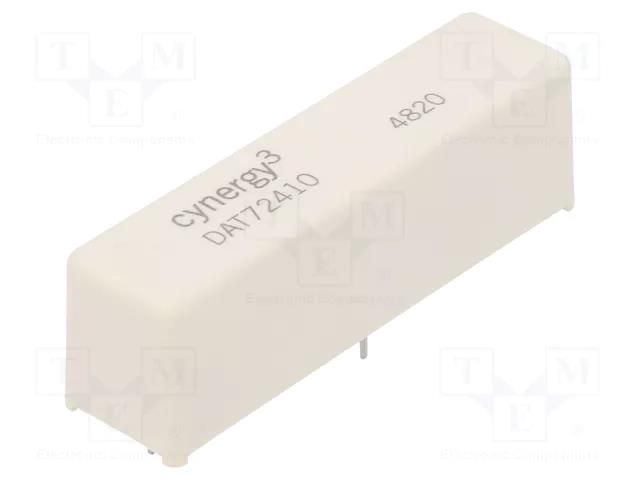

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 3A; max.7kVDC; max.7kVAC SENSATA / CYNERGY3
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 24VDC; 3A; max.7kVDC; max.7kVAC
Useful information
Supplier parameters
Product code
DAT72410
Supplier's product code
DAT72410
Product ID
U-2218093
Body dimensions
60x15.8x18.5mm
Coil resistance
780Ω
Coil voltage min.
20V DC
Contact current max.
3A
Contact material
tungsten
Contact resistance
250Ω
Contacts configuration
SPST-NO
Electrical life
10000000000 cycles
Insulation voltage
17kV
Manufacturer
SENSATA / CYNERGY3
Manufacturer series
D
Mounting
PCB
Operate time
3ms
Operating temperature
-20...70°C
Rated coil voltage
24V DC
Release time
2ms
Switched voltage
max. 7kV AC
Type of relay
reed switch
Brand
SENSATA
