Product description

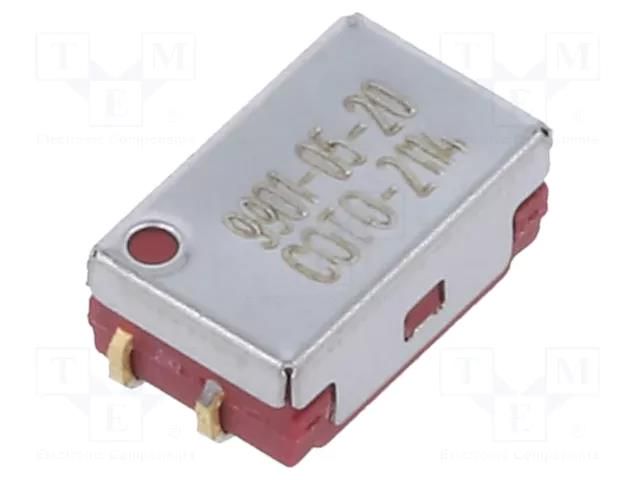

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.100VDC; 3W; SMT COTO TECHNOLOGY
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 0.5A; max.100VDC; 3W; SMT
Useful information
Supplier parameters
Product code
9901-05-20
Supplier's product code
9901-05-20
Product ID
U-2217172
Body dimensions
7.94x3.6x4.95mm
Coil resistance
150Ω
Coil voltage max.
6V DC
Coil voltage min.
3.8V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COTO TECHNOLOGY
Manufacturer series
9901
Mounting
SMT
Operating temperature
-20...85°C
Optional equipment
electrostatic shield
Rated coil voltage
5V DC
Switched voltage
max. 100V DC
Switching capacity
3W
Terminal pitch
1.02mm
Type of relay
reed switch
Brand
COTO TECHNOLOGY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
