Product description

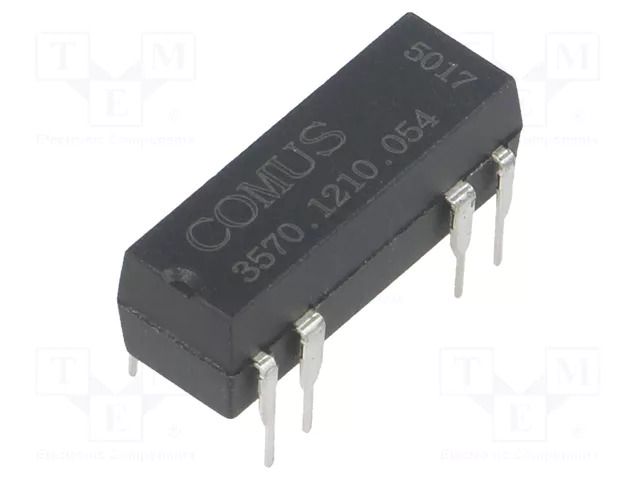

Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W COMUS
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W
Useful information
Supplier parameters
Product code
3570.1210.051
Body dimensions
19.5x6.9x6.9mm
Case
DIP14
Coil resistance
500Ω
Coil voltage max.
7V DC
Coil voltage min.
3.75V DC
Contact current max.
0.5A
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
COMUS
Manufacturer series
3570
Mounting
THT
Operating temperature
-20...85°C
Rated coil voltage
5V DC
Switched voltage
max. 150V DC
Switching capacity
10W
Terminal pitch
2.54mm
Type of relay
reed switch
Brand
COMUS
Supplier's product code
3570.1210.051
Product ID
U-83713
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
