Product description

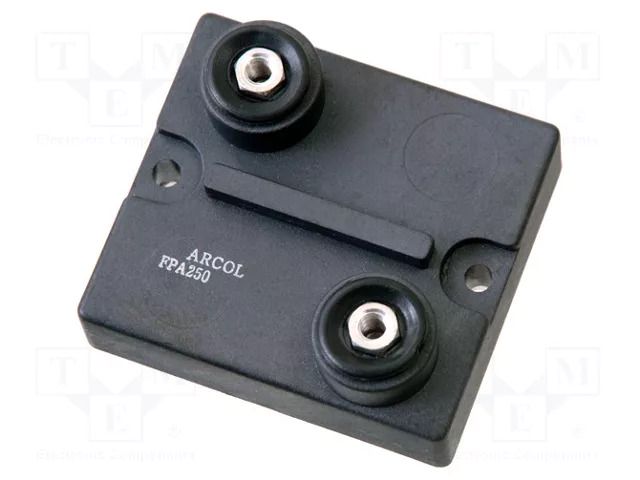

Resistor: thick film; screw; 100kΩ; 250W; ±5%; 67x60x21.5mm ARCOL
Useful information
Specifications
Supplier product description
Resistor: thick film; screw; 100kΩ; 250W; ±5%; 67x60x21.5mm
Useful information
Supplier parameters
Product code
FPA250-100KJ
Brand
ARCOL
Supplier's product code
FPA250-100KJ
Product ID
U-191499
Body dimensions
67x60x21.5mm
Leads
M5 screws
Manufacturer
ARCOL
Max. operating voltage
5kV AC
Mounting
screw
Mounting holes pitch
57mm
Number of mounting holes
2
Operating temperature
-55...155°C
Power
0.25kW
Resistance
100kΩ
Resistor features
needs additional heatsink
Temperature coefficient
100ppm/°C
Type of resistor
thick film
Tolerance
±5%
