Product description

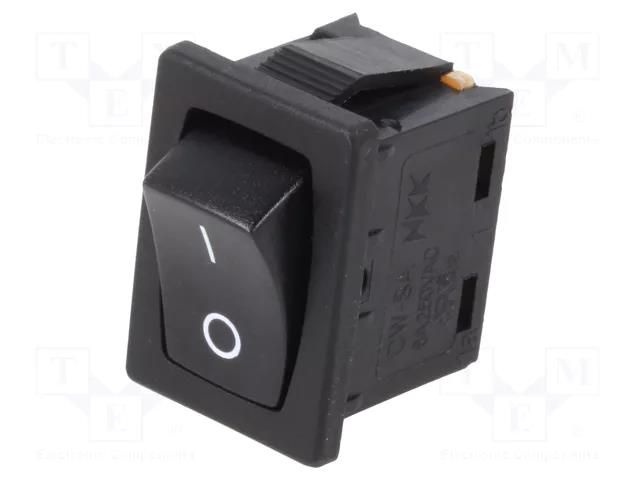

ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; CW; Body: black NKK SWITCHES
Useful information
Specifications
Supplier product description
ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; CW; Body: black
Useful information
Supplier parameters
Product code
CWSA11AAN2S
AC contacts rating @R
6A / 250V AC
Body colour
black
Body dimensions
20.8x14.8x15.6mm
Body material
polyamide
Button marking
O-I
Button shape
rectangular
Contact material
brass
Contact plating
silver plated
Contacts configuration
SPST
Electrical life
10000 cycles
Illumination
none
Key button colour
black
Leads
for soldering
Manufacturer
NKK SWITCHES
Manufacturer series
CW
Max. contact resistance
:20mΩ
Mechanical durability
30000 cycles
Min. insulation resistance
500MΩ
Mounting
on panel
Mounting hole diameter
12.9x19.2mm
Number of positions
2
Number of terminals
3
Operating Force
2.5N
Operating temperature
-10...70°C
Poles number
1
Stable positions number
2
Switching method
ON-OFF
Type of switch
ROCKER
Brand
NKK Nikkai
Supplier's product code
CWSA11AAN2S
Product ID
U-2412726
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
