Product description

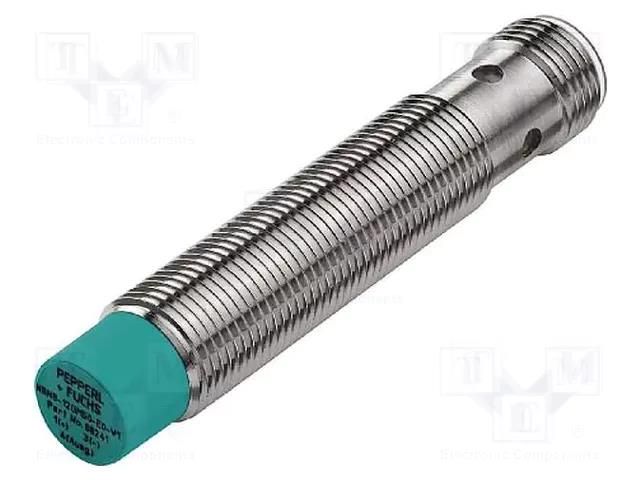

Sensor: inductive; OUT: PNP / NO + NC; 0÷8mm; 10÷30VDC; M12; IP67 PEPPERL+FUCHS
Useful information
Specifications
Supplier product description
Sensor: inductive; OUT: PNP / NO + NC; 0÷8mm; 10÷30VDC; M12; IP67
Useful information
Supplier parameters
Product code
NBN8-12GM50-A2-V1
Brand
PEPPERL+FUCHS
Supplier's product code
NBN8-12GM50-A2-V1
Product ID
U-272371
Body material
brass
Body plating
nickel
Connection
connector M12
IP rating
IP67
Kind of forehead
non-embedded
Manufacturer
PEPPERL+FUCHS
Max. operating current
200mA
Number of pins
4
Operating temperature
-25...70°C
Output configuration
PNP / NO + NC
Overall length
65mm
Range
0...8mm
Supply voltage
10...30V DC
Switch housing
M12
Switching frequency max
1.5kHz
Thread length
42mm
Type of sensor
inductive
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
