Product description
Specifications
Supplier product description

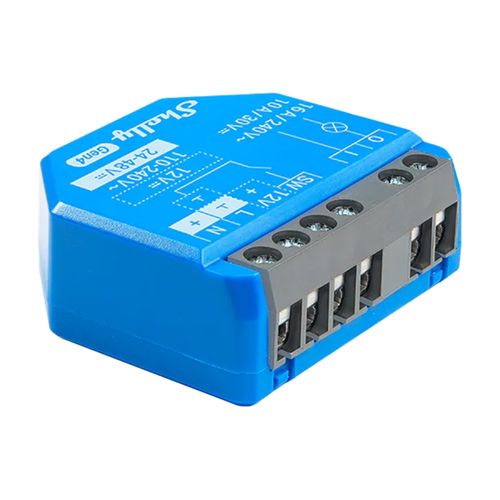

Shelly 1 Gen4 Controller Zigbee/Matter
The Shelly 1 Gen4 Zigbee/Matter controller is a compact, backplane controller with potential-free contacts that allows you to remotely control a variety of electrical devices - either via the local network or the Internet. The device supports multiple communication protocols (Wi-Fi, Bluetooth, Zigbee, Matter), so you can easily adapt it to your preferred home automation system. It can be integrated with popular platforms such as Google Home, Alexa and SmartThings. The controller will work well in residential, office, hotel and other installations.
Integration with any system
The Shelly 1 Gen4 controller supports four major wireless communication protocols: Zigbee (802.15.4), Wi-Fi (802.11 b/g/n), Bluetooth 4.2 and Matter. This allows you to choose for yourself which medium you want to use depending on your installation capabilities and smart home ecosystem. The product also acts as a Zigbee repeater, which extends the network's range. In case of a weak Wi-Fi signal, it can act as its repeater, increasing the stability of the connection.
Remote access and schedules
The device can operate over both local Wi-Fi and the Internet, allowing remote access regardless of the user's location. A built-in web interface allows configuration and control without installing additional applications. An advanced scheduling system provides the ability to define detailed scenarios taking into account the day of the week, the hour and even the second, which works well for automation of lighting, ventilation or garden watering, among others.
Cooperation with applications and systems
The Shelly 1 Gen4 model works with many home automation systems. It supports HTTP APIs, MQTT(S), WebHooks, UDP protocol and virtual components. In addition, it offers KNX net/IP compatibility. With ShellyScript scripting support, it is possible to create custom rules and operation logic.
General
| Manufacturer | Shelly |
|---|---|
| Model | 1Gen4 |
Physical parameters
| Dimensions | 37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches |
|---|---|
| Weight | 26 g / 0.92 ounces |
| Maximum tightening torque of screw terminals | 0.4 Nm / 3.5 lbin |
| Cable cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, multi-stranded and sleeved wires) |
| Length of stripped wire | 6 to 7 mm / 0.24 to 0.28 in. |
| Mounting | Wall console |
| Housing material | Plastic |
| Housing color | Blue |
| Clamp color | Gray |
Environmental conditions
| Operating temperature | -20°C to 40°C / -5°F to 105°F |
|---|---|
| Operating humidity | 30% to 70% RH |
| Maximum altitude. | 2000 m / 6562 ft |
Electrical parameters
| Power supply | 110-240 V~ ; 24-48 V= ; 12 V= |
|---|---|
| Power consumption | < 1 W |
| Neutral wire required | No |
| External protection | Overcurrent circuit breaker according to EN60898-1 (trip characteristic B or C, rated current max. 16 A, minimum breaking capacity 6 kA, energy limitation class 3) |
Output circuit parameters
| Maximum switching voltage | 240 V~ ; 30 V= |
|---|---|
| Maximum switching current | 16 A / 240 V~ ; 10 A / 30 V= |
Sensors and measurements
| Built-in temperature sensor | Yes |
|---|
Wi-Fi
| Protocol | 802.11 b/g/n |
|---|---|
| RF bandwidth | 2412 - 2472 MHz |
| Maximum RF transmit power | < 20 dBm |
| Range | Up to 30 m indoors / 100 feet and up to 50 m outdoors / 160 feet (depending on local conditions) |
Bluetooth
| Protocol | 4.2 |
|---|---|
| RF band | 2402 - 2480 MHz |
| Maximum RF transmit power | < 4 dBm |
| Range | Up to 10 m indoors / 33 feet and up to 30 m outdoors / 100 feet (depending on local conditions) |
Zigbee
| Protocol | 802.15.4 |
|---|---|
| Zigbee repeater function | Yes |
| RF band | 2400 - 2483.5 MHz |
| Maximum RF transmit power | < 20 dBm |
| Range | Up to 100 m indoors / 328 feet and up to 300 m outdoors / 984 feet (depending on local conditions) |
Microprocessor unit
| Processor | ESP-Shelly-C68F |
|---|---|
| Flash memory | 8 MB |
Firmware features
| Number of schedules | 20 |
|---|---|
| Webhooks (URL shares) | 20, with 5 URLs per webhook |
| Scripting support | Yes |
| MQTT | Yes |
