Product description

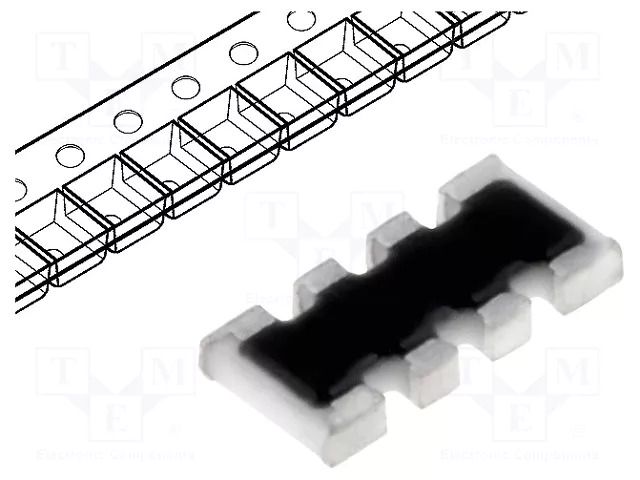

Resistor network: Y; 330kΩ; ±5%; No.of resistors: 4; 62.5mW; SMD ROYALOHM
Useful information
Specifications
SKU
U-167378
Product code
DR1206-330K-4/8
Supplier product description
Resistor network: Y; 330kΩ; ±5%; No.of resistors: 4; 62.5mW; SMD
Useful information
Supplier parameters
Product code
DR1206-330K-4/8
Product ID
U-167378
Body dimensions
3.2x1.6x0.5mm
Case - inch
1206
Case - mm
3216
Manufacturer
ROYALOHM
Max. overload voltage
100V
Min. insulation resistance
1GΩ
Mounting
SMD
Number of resistors
4
Operating temperature
-55...125°C
Operating voltage
50V
Power
62.5mW
Resistance
0.33MΩ
Resistor features
terminals of all resistors are separated
Temperature coefficient
400ppm/°C
Terminal pitch
0.8mm
Type of resistor network
Y
Tolerance
±5%
Supplier's product code
DR1206-330K-4/8
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
