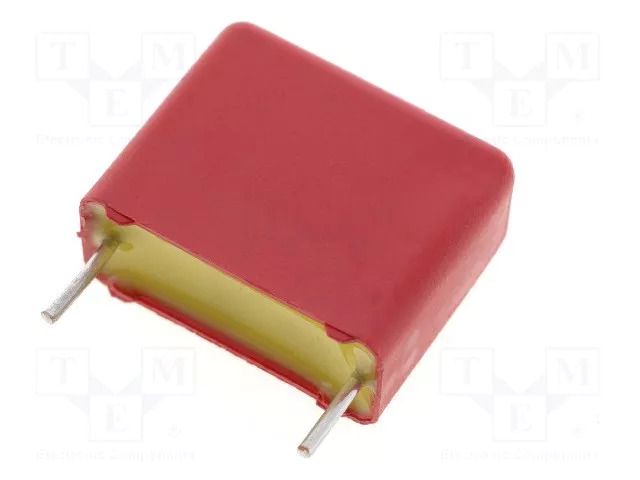

Capacitor: polypropylene; 100nF; 6000VDC; 700VAC; 35x50x41.5mm WIMA
Product Code: FKP1-100N/6000/10%
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-10-29 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 65 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Capacitor: polypropylene; 100nF; 6000VDC; 700VAC; 35x50x41.5mm WIMA
Useful information
Specifications
Supplier product description
Capacitor: polypropylene; 100nF; 6000VDC; 700VAC; 35x50x41.5mm
Useful information
Supplier parameters
Product code
FKP1-100N/6000/10%
Brand
WIMA
Supplier's product code
FKP1-100N/6000/10%
Product ID
U-189493
Body dimensions
35x50x41.5mm
Capacitance
0.1µF
Capacitor application
high frequency circuits
Capacitors features
low dielectric loss factor
Climate class
55/100/56
Flammability rating
UL94V-0
Kind of material
flame retardant
Manufacturer
WIMA
Max. operating voltage
700V AC
Mounting
THT
Operating temperature
-55...100°C
Pulse resistance
13kV/μs
Terminal pitch
37.5mm
Type of capacitor
polypropylene
Tolerance
±10%
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
