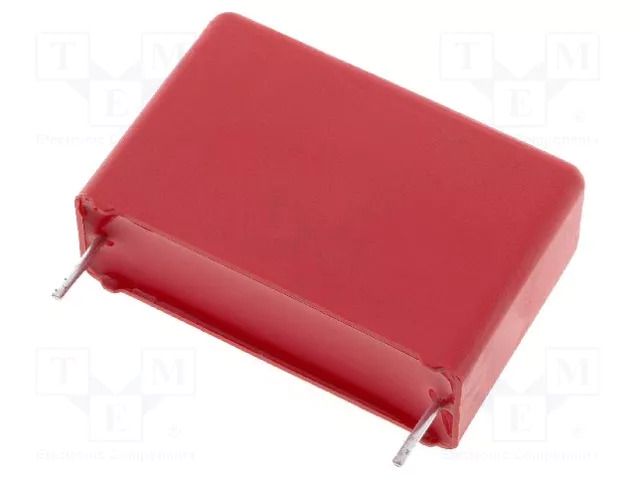

Capacitor: polypropylene; 220nF; 1.6kVDC; 650VAC; 41.5x13x24mm WIMA
Product Code: MKP10-220N/1600
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-10-17 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 828 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Capacitor: polypropylene; 220nF; 1.6kVDC; 650VAC; 41.5x13x24mm WIMA
Useful information
Specifications
Supplier product description
Capacitor: polypropylene; 220nF; 1.6kVDC; 650VAC; 41.5x13x24mm
Useful information
Supplier parameters
Product code
MKP10-220N/1600
Supplier's product code
MKP10-220N/1600
Product ID
U-260016
Body dimensions
41.5x13x24mm
Capacitance
0.22µF
Capacitor application
impulse circuits
Capacitors features
low dielectric loss factor
Climate class
55/100/56
Flammability rating
UL94V-0
Kind of material
flame retardant
Kind of package
cardboard packaging
Lead length
6mm
Manufacturer
WIMA
Max. operating voltage
1.6kV DC
Mounting
THT
Operating temperature
-55...110°C
Pulse resistance
1.8kV/μs
Terminal pitch
37.5mm
Type of capacitor
polypropylene
Tolerance
±10%
Brand
WIMA
