Product description

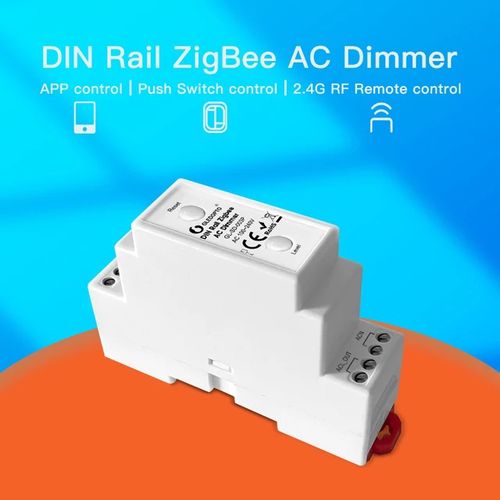

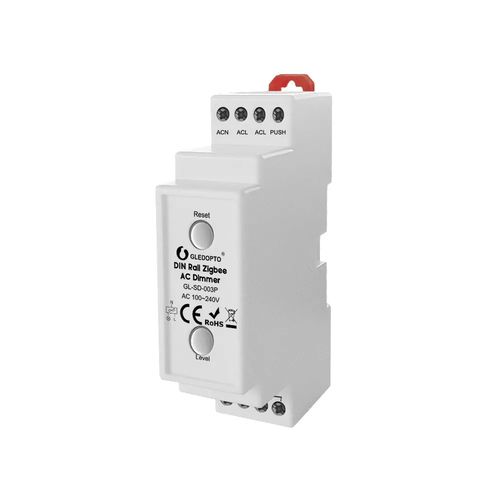

The Gledopto AC dimmer can be easily installed in an electric cabinet on a DIN-rail. It does not require a separate power supply, as both the input and output sides use 100-240V AC. It has a maximum rated output power of 400W on the output side, and 200W for dimmable LEDs.

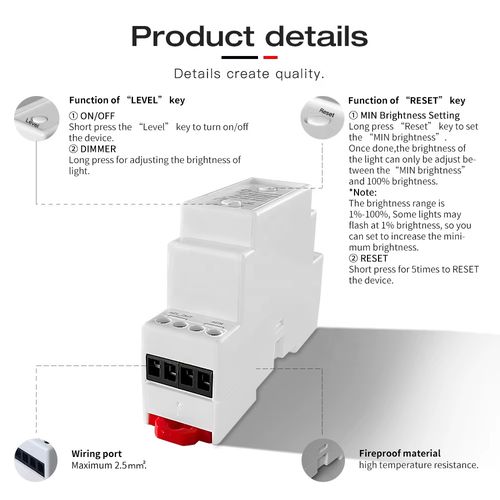

The minimum brightness level can be set with a button on the device, below which the dimmer will not let the brightness drop, thus preventing flickering of light sources at low brightness levels.

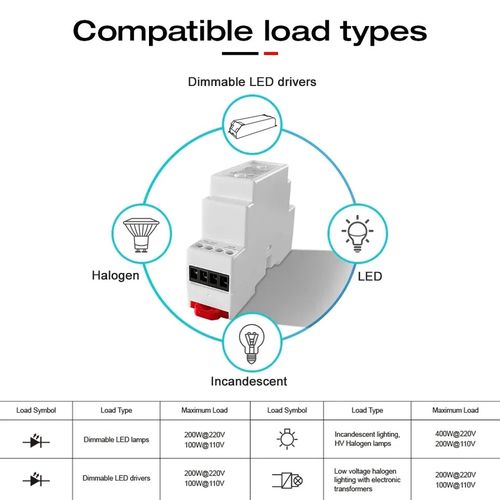

The device can be used to adjust the brightness of :
- dimmable LED lights/drivers,
- incandescent or HV halogen lamps,
- LV halogen lamps powered by electronic transformer
The smart dimmer can be controlled in three ways:

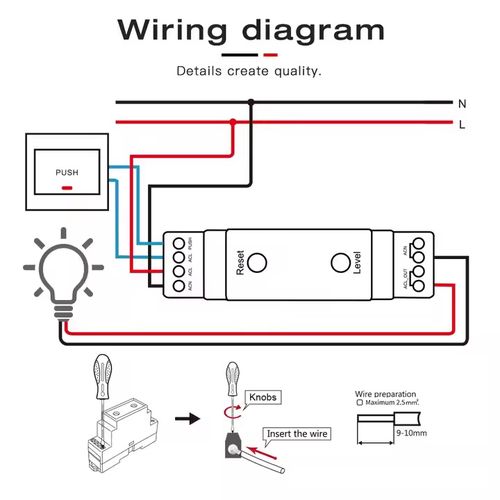

1. From wall-mounted push-button switch(es): if you press the switch briefly, it switches the light sources on and off, if you hold it down, it controls the brightness.
2. 2.4GHz radio frequency (RF) remote controllers and wireless RF wall panels
3. via the Zigbee gateway (manually from your phone or via smart home automation)
Product features:
- AC dimmer for dimming 230V AC light sources
- Easy integration with Zigbee wireless smart home controls
- Compatible with almost all major Zigbee gateways. Sonoff / eWeLink with Zigbee gateways, Tuya/SmartLife with Zigbee gateways, Philips Hue bridge, SmartThings / Aeotec with gateway, homee, ConBee II, Hubitat Elevation, Amazon with Zigbee gateways.
- Smart home app - depending on the Zigbee gateway (eWeLink / Tuya / SmartLife / Hue / SmartThings / Apple Home / Google Home / Alexa / etc.)
- Zigbee mesh function: yes
- Voice control - Google Assistant or Alexa, depending on the Zigbee gateway
- Can be controlled from 2.4GHz RF remote controllers and RF wall panels (separately sold products), no Zigbee or other hub required for RF remote control
- DIN-rail mounting in electrical cabinets
- Controlled circuit: max 1.5A / 400W, for dimmable LED: 200W
Useful information
Specifications
Experimental product description generated by artificial intelligence
GLEDOPTO Šviesos valdiklis TRIAC, DIN bėgeliui, 230Vac, 200W, ZigBee, MQTT
This GLEDOPTO TRIAC dimmer is designed for multi-color lighting control and offers seamless integration into your smart home system. It's a versatile and reliable solution for managing your lighting needs.
Key Features and Benefits
- DIN rail mounting: Easy installation in standard electrical panels.
- 230Vac compatibility: Works with standard household voltage.
- 200W maximum load: Suitable for a wide range of lighting fixtures.
- ZigBee and MQTT protocols: Integrates with various smart home ecosystems and platforms.
- Reliable and efficient dimming: Provides smooth and precise control over your lights.
- Multi-color control: Perfect for managing RGB or similar multi-color lighting systems.
Applications
This TRIAC dimmer is ideal for:
- Smart home automation projects
- Controlling LED lights, dimmable LED drivers, incandescent lighting, and low-voltage halogen lighting with electronic transformers.
- Integration with various smart home hubs and platforms.
Why Choose GLEDOPTO?
GLEDOPTO is a trusted brand known for its high-quality smart home products. This dimmer offers a combination of advanced features, ease of use, and reliable performance, making it a smart choice for your lighting control needs.

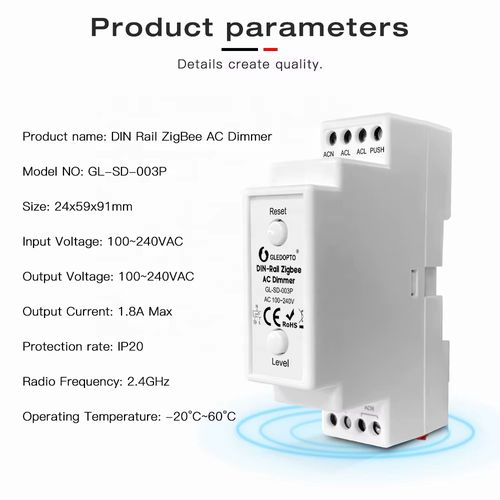

Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 100~240VAC |
| Output Voltage | 100~240VAC |
| Output Current | 1.8 A Max |
| Protection rate | IP20 |
| Radio Frequency | 2.4GHz |
| Operating Temperature | -20°C~60°C |
Note: Always consult the user manual for detailed instructions and safety precautions before installation and use.
