Connector: PCB terminal block; terminal; 17.5A; 250V; angled 90° DEGSON ELECTRONICS
Product Code: DG301-5.0-3P11

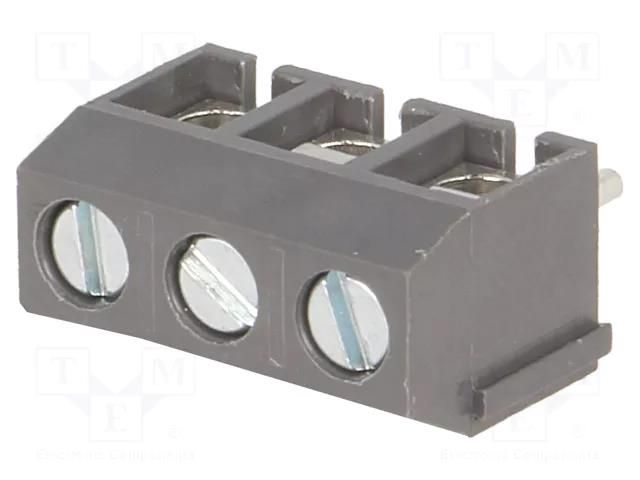

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-26 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
3,50
Product description
Connector: PCB terminal block; terminal; 17.5A; 250V; angled 90° DEGSON ELECTRONICS
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 17.5A; 250V; angled 90°
Useful information
Supplier parameters
Product code
DG301-5.0-3P11
Product ID
U-163483
Body material
PBT
Colour
grey
Conform to the norm
VDE
Connector
terminal
Connector pinout layout
1x3
Connector variant
with wire protector
Connectors features
assembling possibility
Contact material
brass
Contact plating
tinned
Contacts pitch
5mm
Current rating
17.5A
Depth
7.6mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
10mm
Lead length
4.3mm
Length
15mm
Manufacturer
DEGSON ELECTRONICS
Mechanical mounting
on PCBs
Number of ways
3
Operating temperature
-30...120°C
Rated voltage
250V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
1.5mm<sup>2</sup>
Wire size
22AWG...14AWG
Brand
DEGSON ELECTRONICS
Supplier's product code
DG301-5.0-3P11
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
