Connector: PCB terminal block; terminal; 15A; 450V; angled 90° DEGSON ELECTRONICS
Product Code: DG235-7.5-02P

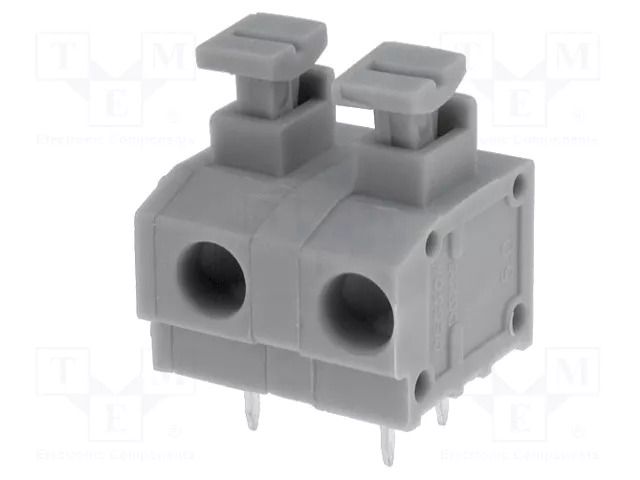

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 209 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Connector: PCB terminal block; terminal; 15A; 450V; angled 90° DEGSON ELECTRONICS
Useful information
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 15A; 450V; angled 90°
Useful information
Supplier parameters
Product code
DG235-7.5-02P
Body material
polyamide 66
Colour
grey
Conform to the norm
VDE
Connector
terminal
Connector pinout layout
1x2
Connector variant
with push button
Contact material
phosphor bronze
Contact plating
tinned
Contacts pitch
7.5mm
Current rating
15A
Depth
12.5mm
Electrical mounting
THT
Flammability rating
UL94V-0
Height
15.5mm
Manufacturer
DEGSON ELECTRONICS
Mechanical mounting
on PCBs
Number of ways
2
Operating temperature
-40...105°C
Rated voltage
450V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
1.5mm<sup>2</sup>
Wire size
20AWG...18AWG
Supplier's product code
DG235-7.5-02P
Product ID
U-163405
Brand
DEGSON ELECTRONICS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
