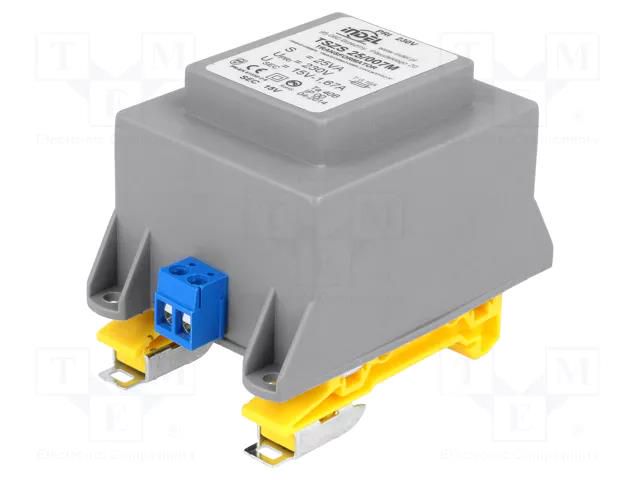

Transformer: encapsulated; 25VA; 230VAC; 15V; 1.67A; IP00; A: 63.6mm INDEL
Product Code: TSZS25/15V
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
To €25.00 (Orders up to 1000 kgs) | For free |
Over €25.00 (Orders up to 1000 kgs) | For free |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
For free
Product description
Transformer: encapsulated; 25VA; 230VAC; 15V; 1.67A; IP00; A: 63.6mm INDEL
Useful information
Specifications
Supplier product description
Transformer: encapsulated; 25VA; 230VAC; 15V; 1.67A; IP00; A: 63.6mm
Useful information
Supplier parameters
Product code
TSZS25/15V
A dimension
63.6mm
A1 dimension
41.8mm
B dimension
53.6mm
B1 dimension
35.8mm
C dimension
47.2mm
C1 dimension
37.7mm
Conform to the norm
PN EN 61558
D dimension
72.5mm
D1 dimension
43.5mm
E dimension
81.8mm
Electrical insulation strength
4kV/60s
Flammability rating
UL94V-0
Insulation class
II
IP rating
IP00
Leads
terminal block
Manufacturer
INDEL
Mounting
for DIN rail mounting
Power
25VA
Primary voltage
230V AC
Secondary voltage 1
15V
Secondary winding current 1
1.67A
Thermal class
Ta40B
Type of transformer
encapsulated
Supplier's product code
TSZS25/15V
Product ID
U-362723
Brand
INDEL
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
