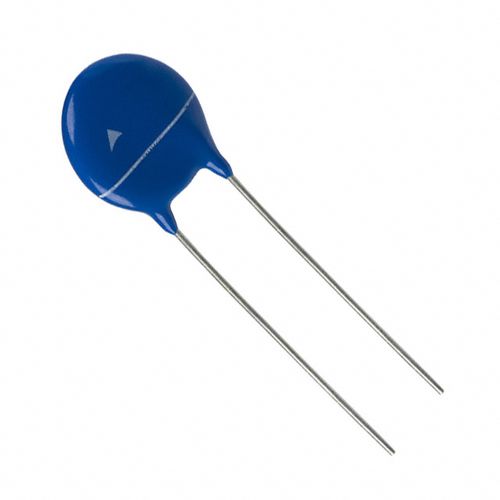

Varistor 420VAC 560VDC 4500A Ø16.5mm EPCOS RoHS
Product Code: SIOV-S14K420
Brand
More similar products
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Specifications
SKU
159293
Weight
0.00345 kg.
Distance between conclusions, mm
7.5
Operating voltage AC, V
420V
Operating voltage DC, V
560V
Brand
Housing
Ø16.5mm
Maximum current, A, A
4500A
Varistor voltage, V
680
Product code
SIOV-S14K420
Supplier product description
Varistor: metal-oxide; THT; 420VAC; 560VDC; 680V; 4500A; -40÷105°C
Useful information
Supplier parameters
Energy 2 ms
90J
Leads dimensions
Ø0.8x30mm
Manufacturer
EPCOS
Max body dimensions
Ø16.5mm
Max. operating voltage
420V AC
Mounting
THT
Operating temperature
-40...105°C
Terminal pitch
7.5mm
Type of varistor
metal-oxide
Varistor max current 8/20µs
4.5kA
Varistor voltage
680V
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
