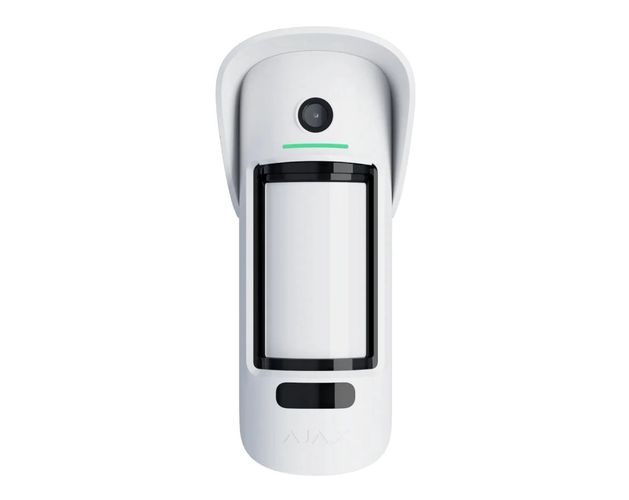

Wireless motion detector with camera Ajax MotionCam Outdoor 38192.84.WH1 (white, PIR)
Product Code: AJMOTIONCAMODW
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-08-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Wireless motion detector with camera Ajax MotionCam Outdoor 38192.84.WH1 (white, PIR)
Specifications
Supplier product description
- Type: Wireless motion detector with camera
- Model: Ajax MotionCam Outdoor
- Color: White
- Technology: PIR
- Detection range: 15 m
- Detection angle: 90°
- Pet immunity: up to 20 kg
- Product code: 38192.84.WH1
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz * 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Maximum effective radiated power (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
- Radio signal modulationGFSK
- Radio signal rangeup to 5,550 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio signal range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Frequency hoppingTo prevent radio interference and jamming., Learn more
- Wings communication technologyProprietary wireless communication technology to transmit photo verifications. It is not certified according to UL/ULC standards., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Data packages reload in case of transmission errors., Photo delivery check., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz * 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Radio communication rangeup to 5,550 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Frequency hoppingTo prevent radio interference and jamming., Learn more
- Detection
- Sensitive elements2 × PIR sensor
- Photo by AlarmA built-in camera is activated if the detector is armed and motion is detected., Learn more
- Motion detection distanceup to 10 ft–49 ft, When installed at a height of 2.6 ft–4.3 ft. Adjusted with a scrollbar on the device enclosure., Learn more
- Motion detection angleshorizontal — 90°
- Camera angleshorizontal — 105°, vertical — 50°
- TV distortionBarrel — 17%, EBU standard.
- Motion detection speedfrom 1.0 to 6.6 ft/s, The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
- Sensitivity3 levels, Adjusted by PRO or user with admin rights in the Ajax app.
- Pet immunityweight: not relevant height: up to 2.6 ft, Learn more
- False alarm preventionLISA, SmartDetect, Software algorithms.
- Temperature compensationEffective motion detection at temperatures from −13°F to 140°F.
- Photo verification
- Photo by AlarmA built-in camera is activated if the detector is armed and motion is detected. Camera and photo features are not evaluated by UL., Learn more
- Adjustable photo resolution640 × 352 px 320 × 176 px (by default), Adjusted by PRO or user with admin rights in the Ajax app.
- IR backlightFor night photography and low light conditions.
- Series of picturesfrom 1 to 5 images with a resolution 320 × 176 px, Adjusted by PRO or user with admin rights in the Ajax app.
- Photo delivery timeup to 9 s — 320 × 176 px resolution, up to 20 s — 640 × 352 px resolution, Photo delivery time depends on the image resolution selected in the device settings., Learn more
- Sabotage protection
- Tamper alarmNotifications on attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
- Protection against spoofingdevice authentication
- Anti-masking systemdetects attempts to block the detector view, Learn more
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Battery4 × CR123A, Pre-installed.
- Typetype C
- Calculated battery lifeup to 3 years, With Delay when entering feature disabled., Learn more, up to 2.5 years, With Delay when entering feature enabled., Learn more
- Detector’s operating voltage range3.8−6.2 V⎓
- Detector’s nominal operating voltage6 V⎓
- Quiescent detector’s current consumption at nominal voltage23 μA
- Maximum detector’s current consumption at nominal voltage906 mA
- Full battery capacity3,200 mAh, Capacity of each battery is 1,600 mAh.
- Low battery voltage4.65 V⎓
- Low battery recovery voltage5 V⎓
- End-of-life battery voltage3.8 V⎓, Device is switched off.
- End-of-life battery capacity500 mAh
- ManufacturerHuiderui or Panasonic, UL listed.
- Enclosure
- Dimensions8.11″ × 4.25″ × 3.66″
- Weight16.58 oz
- Operating temperature rangefrom −13°F to 140°F, Temperature range from -40 °F (-40 °C) to 150 °F (+66 °C) is certified according to UL/ULC standards.
- Operating humidityup to 95%, Humidity of up to 95% is certified according to UL/ULC standards.
- Protection classIP55
Supplier parameters
Product code
AJMOTIONCAMODW
Brand
AJAX
Category
Sensors
Supplier's product code
AJMOTIONCAMODW
Product ID
U-4625752
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
