Product description

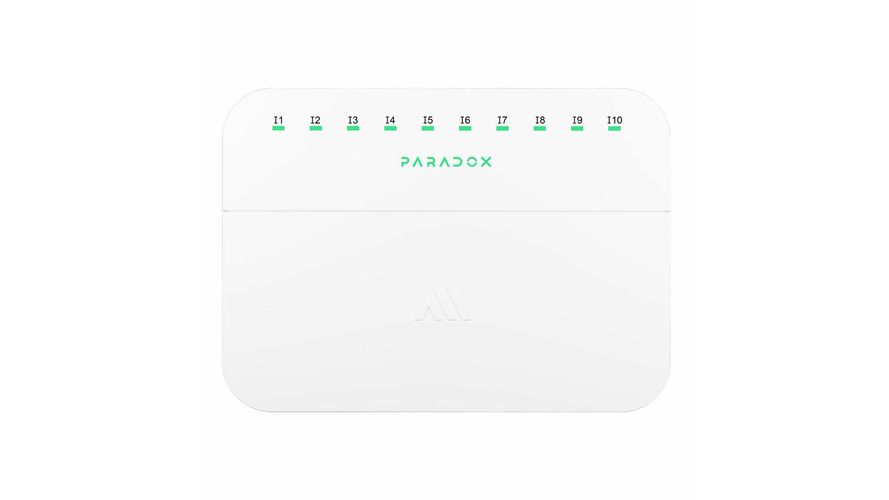

Wireless wired zone expander Paradox ZX10M (10 inputs, 868 MHz, for M25 control panel)
Specifications
Supplier product description
- Type: Wireless wired zone expander module
- Model: Paradox ZX10M
- Compatible with: Paradox M25 control panel
- Inputs: 10 (1 configurable as a fire zone)
- Power supply: 12V DC
- Backup battery: 2 × 3.7V Li-ion, 5000 mAh
- Backup operation time: up to 10 h @ 220 mA
- Temperature sensor: Yes
- Supported inputs: no EOL, single EOL, dual EOL resistors
- Dimensions: 18 × 13 × 4.5 cm
- Weight: 0.41 kg
- Operating frequency: 868 MHz
- General
- ModelZX10M
- TypeWireless Wired Zone Expander
- CompatibilityParadox M25 centrale (868 MHz)
- Inputs10 wired zone inputs (zone 1 can be configured as fire zone)
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
- RF Power868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
- Input ConnectionSupports no EOL resistor, single EOL (1KΩ), or dual EOL (2 × 1KΩ); zone 1 supports 2-wire smoke
- Auxiliary Power Output12.5–13.8 VDC (12.5 V on battery), max 500 mA; backup 220 mA for 10 h
- Battery2 × 3.7V Li-ion, 5000 mAh (rechargeable)
- Battery BackupUp to 10 hours @ 220 mA auxiliary load
- Transmission Time<20 ms
- Supervision Time20 min, 10 min (default), or 3 min
- IndicatorsApp shows zone open/close, tamper, power supply, battery, temperature, TX/RX; LEDs for zone status
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentIndoor
- Operating Temperature–20 °C to +50 °C (–4 °F to +122 °F); charging 0 °C to +40 °C
- Auto-LearnYes
- ColorWhite
- Dimensions18W × 13H × 4.5D cm (7.09W × 5.12H × 1.79D in.)
- Weight0.41 kg
- CertificationsCE, EN 50131-3, EN 50131-5-3, FCC 15.247
