Coaxial Cable CB113 500m, EMOS
Toote kood: S5268
Kättetoimetamise tähtajad
2024-06-20 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Tarnija toote kirjeldus
Product description

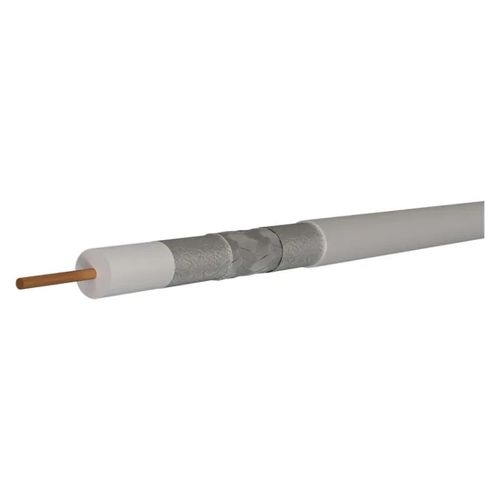

Coaxial cable with foam dielectric and triple shielding. The cable is used for tertiary cabling and indoor cabling. Outer diameter of the cable is 6.8 mm.
Tarnija toote parameetrid
APE = air dielectric
not stated
capacity (pF/m)
53
coaxial cable type
CB113
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
7,05 mm
diameter of the inner conductor
1.13 mm
dielectric type, diameter
FPE 4.8 mm
factor of shortening
0.85
FPE = Foam dielectric
yes
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
1 000
intended use
terciary distribution CATV, SAT
material of the cable jacket
PVC (HD 624)
material of the inner conductor
copper (Cu)
material of the shielding
tinned cooper (CuSn)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
19.3
max. attenuation at 20 °C (dB/100 m) 10 MHz
2.2
max. attenuation at 20 °C (dB/100 m) 100 MHz
5.8
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
29.5
max. attenuation at 20 °C (dB/100 m) 450 MHz
12.5
max. attenuation at 20 °C (dB/100 m) 650 MHz
15.3
max. attenuation at 20 °C (dB/100 m) 860 MHz
18.5
max. DC resistance at 20 °C (Ohm/km) - inner core
18.5
max. DC resistance at 20 °C (Ohm/km) - outer core
38.5
min. bend radius single/multiple
35/70 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
30
min. return loss at 20 °C (dB) 600 to 900 MHz
23
min. return loss at 20°C (dB) 300 to 600 MHz
25
min. shielding attenuation (dB) 10 ~ 800 MHz
>95
mounting temperature
+5 °C to +60 °C
number of braiding wires
144× 0,12 mm
number of shieldings
3
packaging
500 m, wooden drum
PE = polyethylene dielectric
Foamed PE
PES = layer film
yes
reaction to the fire
Eca
recommended types of connectors - F pressing
*K7220
recommended types of connectors - F screwing
*K7351
shielding diameter
144× 0,12 mm2
shielding I. foil
1× Al/PES
shielding II. foil
Al/PES spiral
shielding protection
>84 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1–500 m
type of packaging - length
500 m
type of packaging - type of coil
wooden coil
UV resistant
no
warranty period
5 years
weight (kg/km)
43.5
Product code
S5268
Brand
EMOS
Supplier's product code
S5268
Product ID
U-2361520
