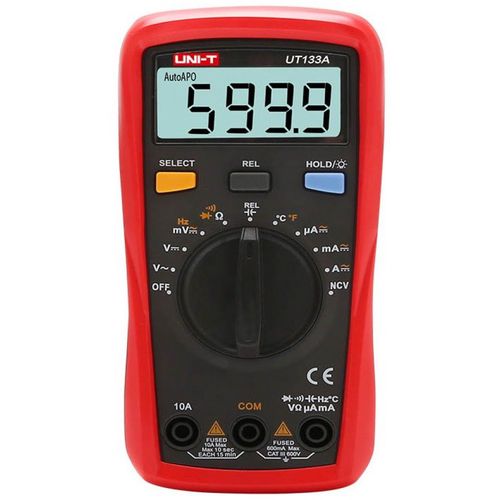

UT133 Series Digital Multimeters
UT133 series is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.
Models in UT133 Series: UT133A, UT133B
Features of UT133 Series Digital Multimeters
Certifications: CE, UKCA, cETLus
● Over voltage/current audible alarm
Specifications of UT133 Series Digital Multimeters
|
Specifications |
Range |
UT133A |
UT133B |
|
DC voltage (V) |
600mV/6000mV/60V/600V |
±(0.5%＋3) |
±(0.5%＋3) |
|
AC voltage (V) |
600V |
±(0.7%+3) |
±(1.2%+3) |
|
DC current (A) |
600uA/60mA/600mA/10A |
±(1%+3) |
±(1%+2) |
|
AC current (A) |
10A |
±(1.2%+3) |
|
|
Resistance (Ω) |
600Ω/6000Ω/60kΩ/600kΩ/60MΩ |
±(0.8%+2) |
±(0.8%+2) |
|
Capacitance (F) |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF |
±(4%+5) |
±(4%+5) |
|
Frequency (Hz) |
10.00Hz~1.000MHz |
±(0.1%+5) |
|
|
Temperature (℃) |
‒40℃~1000℃ |
±(1%+4) |
|
|
Temperature (℉) |
‒40℉~1832℉ |
±(1.5%+5) |
|
|
Features |
|||
|
Display count |
6000 |
6000 |
|
|
Range selection |
Auto |
Manual |
|
|
Diode |
√ |
√ |
|
|
Continuity buzzer |
√ |
√ |
|
|
Battery test |
Tests 1.5V and 9V batteries and |
√ |
|
|
NCV |
√ |
√ |
|
|
LCD backlight |
√ |
√ |
|
|
Test probe holder |
√ |
√ |
|
|
Data hold |
√ |
√ |
|
|
Low battery indication |
√ |
√ |
|
|
Overload indication |
√ |
√ |
|
|
General Characteristics |
|||
|
Power |
1.5V battery (R03) x 2 |
||
|
Display |
56.8mm x 36.1mm |
||
|
Product color |
Red and grey |
||
|
Product net weight |
255g (with batteries) |
||
|
Product size |
155mm x 76.5mm x 49mm |
||
|
Standard accessories |
Manual, test leads, K-type thermocouple (UT133A) |
||
|
Standard individual packing |
Gift box, English manual |
||
|
Standard quantity per carton |
350mm x 335mm x 318mm |
||
|
Standard carton measurement |
30pcs |
||
|
Standard carton gross weight |
12.5kg |
||
