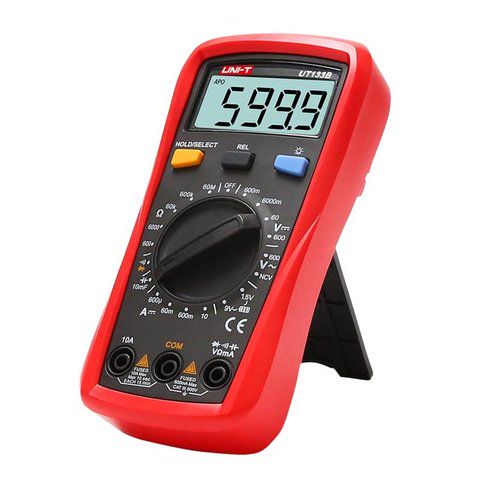

Multimetr UNI-T UT133B with capacitance measurement

Name: Multimetr UNI-T UT133B with capacitance measurement
Brand: UNI-T
SKU: 326069
Price: 27.9 EUR
Availability: InStock

Product Code: UT133B

Price range

Amount	Price with tax (pcs)
1	€27.90
2+	€25.90
wholesale

Home delivery 1-4 b.d.

Delivery to DPD Pickup locations 1-4 b.d.

Products purchased together

Lead acid battery 12V 7.2Ah Pb AGM VRLA CSB

CSB-GP1272

Precise Cutter 127mm, Hanlong Tools

HT-109

€6.10€6.29

Tweezer Set (4 pcs), 808-389 Pro'sKit

808-389

€7.27€7.50

UT131A Palm Size Multimeter

UT131B

Delivery terms

Order processing

Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m. We will notify you via SMS and email when your order is being delivered.

Quantity in shop

Not available	Lemona Estonia warehouse
6 pcs	Lemona Vilnius warehouse 1
Not available	Lemona Vilnius warehouse 2
4 pcs	Lemona Kaunas warehouse
2 pcs	Lemona Klaipėda warehouse
3 pcs	Lemona Šiauliai warehouse
>20 pcs	Lemona central warehouse

Home delivery

After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.

Over €50.00

(Orders up to 1000 kgs)

For free

To €50.00

(Orders up to 1000 kgs)

€5.00

Delivery to DPD pickup locations

After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.

3,50

Product description

UT133 Series Digital Multimeters

UT133 series is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

Models in UT133 Series: UT133A, UT133B

Features of UT133 Series Digital Multimeters

Certifications: CE, UKCA, cETLus

● Over voltage/current audible alarm

● High voltage warning

● Auto power off (can be disabled)

● Low power consumption

● Fast and accurate capacitance measurement

● 2m drop proof

Specifications of UT133 Series Digital Multimeters

Specifications	Range	UT133A	UT133B
DC voltage (V)	600mV/6000mV/60V/600V	±(0.5%＋3)	±(0.5%＋3)
AC voltage (V)	600V	±(0.7%+3)	±(1.2%+3)
DC current (A)	600uA/60mA/600mA/10A	±(1%+3)	±(1%+2)
AC current (A)	10A	±(1.2%+3)
Resistance (Ω)	600Ω/6000Ω/60kΩ/600kΩ/60MΩ	±(0.8%+2)	±(0.8%+2)
Capacitance (F)	9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF	±(4%+5)	±(4%+5)
Frequency (Hz)	10.00Hz~1.000MHz	±(0.1%+5)
Temperature (℃)	‒40℃~1000℃	±(1%+4)
Temperature (℉)	‒40℉~1832℉	±(1.5%+5)
Features
Display count		6000	6000
Range selection		Auto	Manual
Diode		√	√
Continuity buzzer		√	√
Battery test	Tests 1.5V and 9V batteries and displays ‘good’, ‘low’, ‘bad’ status		√
NCV		√	√
LCD backlight		√	√
Test probe holder		√	√
Data hold		√	√
Low battery indication		√	√
Overload indication		√	√
General Characteristics
Power	1.5V battery (R03) x 2
Display	56.8mm x 36.1mm
Product color	Red and grey
Product net weight	255g (with batteries)
Product size	155mm x 76.5mm x 49mm
Standard accessories	Manual, test leads, K-type thermocouple (UT133A)
Standard individual packing	Gift box, English manual
Standard quantity per carton	350mm x 335mm x 318mm
Standard carton measurement	30pcs
Standard carton gross weight	12.5kg

Useful information

User manual EN

Specifications

SKU

326069

Weight

0.31 kg.

Barcodes

6935750513323

Warranty period (months)

Measuring voltage AC, V

600

Measured current AC, A

Height, mm

155

The voltage DC is measured, V

600

Measured current DC, A

Screen limit

6000

Brand

UNI-T

Product description generated by artificial intelligence

UNI-T UT133B Digital Multimeter with Capacitance Measurement

The UNI-T UT133B is a 6000-count digital multimeter designed for various measurement needs. This handheld device is compact and easy to use, making it suitable for professionals and hobbyists alike.

Key Features and Functions

Capacitance Measurement: Measures capacitance, a key feature not found in all multimeters of this class.
Auto Ranging: Simplifies the measurement process by automatically selecting the appropriate range.
Large LCD Display: Provides clear and easy-to-read measurements.
Overload Protection: Includes safety features to protect the device and the user.
Multiple Measurement Functions: Measures AC/DC voltage, AC/DC current, resistance, and more.
Durable Construction: Built to withstand everyday use.

Applications

The UNI-T UT133B is ideal for a wide range of applications, including:

Electrical troubleshooting
Electronics repair
Automotive diagnostics
Industrial maintenance
Educational purposes

Why Choose the UNI-T UT133B?

The UNI-T UT133B offers a combination of features, accuracy, and durability at a competitive price point. Its capacitance measurement capability sets it apart from many basic multimeters, making it a versatile tool for various tasks. The inclusion of safety features ensures reliable and safe operation.

Feature	Benefit
Capacitance Measurement	Expands measurement capabilities
Auto Ranging	Simplifies operation
Overload Protection	Ensures safe operation
Compact Design	Easy to handle and transport

This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:

Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
Name or Model Discrepancies: AI may misrepresent the product name or model.

If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
