Kauba kirjeldus

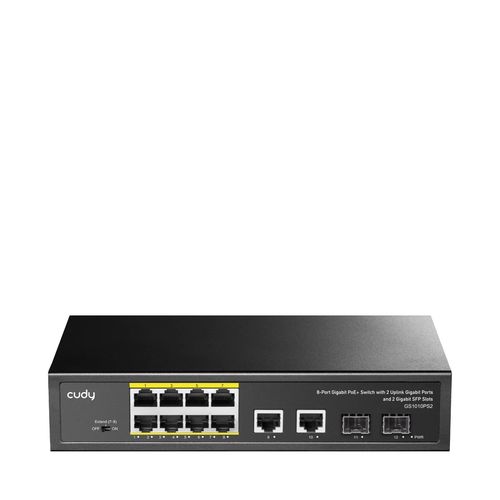

8 Ports Switch CUDY GS1010PS2 (Unmanaged, PoE)
Tehnilised andmed
Laokood
U-4675009
NomNr
SWITCHCUDYGS1010PS2
Tarnija toote kirjeldus
- Type: Switch (Unmanaged)
- Model: CUDY GS1010PS2 1.0
- Case: Metal
- Ports: 10 x 1 Gbps RJ45 (8 x PoE, 2 x Uplink), 2 x SFP
- Operating modes: VLAN/Default/Extend
- PoE Power per port: 30 W
- Maximum PoE Power: 120 W
- PoE standards: 802.3af/at
- Switching capacity: 24 Gbps
- MAC table size: 2048
- Forwarding rate: 17,856 Mpps
- Power input: 100 - 240V AC
- Power consumption: 120 W
- Dimensions (WxDxH): 220 mm x 161 mm x 44 mm
- Operating temperature: from 0°C to 40°C
- General
- ModelGS1010PS2
- Ethernet Ports8× Gigabit PoE Ethernet Ports, 2× Uplink Gigabit Ethernet Ports, 2× Uplink Gigabit SFP Slots
- PoE StandardsIEEE 802.3af (15.4W), IEEE 802.3at (30W)
- Bandwidth24 Gbps
- Packet Forwarding Rate17.856 Mpps
- Memory Cache448 Kbit
- MAC Address Table2K
- Jumbo Frame Support2048 bytes
- Transfer ModeStore and forward
- Supported Network ProtocolsIEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)
- Industry StandardsEMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
- Network Medium10Base-T: Cat3, 4, 5 UTP (≤100m); 100/1000Base-TX: Cat5 or above UTP (≤100m)
- Optical MediumMultimode: 50/125, 62.5/125, 100/140 µm; Single-mode: 8/125, 8.7/125, 9/125, 10/125 µm
- IndicatorsPWR (Power), 1-12 Green Light (Link & Data): On = Normal, Flashing = Transmitting
- DIP Switch - Extend ModeOff: <100m, 10/100/1000M adaptive, watchdog off; On: Ports 7–8 capped at 10 Mbps, 250m range, watchdog active
- Input VoltageAC 100–240V
- Power Supply Output52V 2.3A (120W)
- Product Size220×161×44.5 mm
- Package Size315×215×85 mm
- Working Temperature-10~50°C
- Storage Temperature-40~70°C
- Working Humidity10%–90%, non-condensing
- Storage Humidity5%–90%, non-condensing
- Included in PackageSwitch (1x), Power Cord (1x), User Manual (1x)
- Special FeaturesUplink GbE and SFP for expansion, Extend mode up to 250 m, PoE watchdog, PoE port priority, fanless metal design
Tarnija toote parameetrid
Product code
SWITCHCUDYGS1010PS2
Category
Swit
Supplier's product code
SWITCHCUDYGS1010PS2
Product ID
U-4675009
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
