Kauba kirjeldus

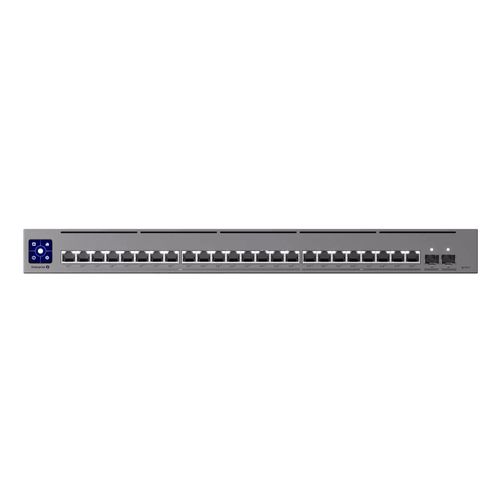

24-port switch Ubiquiti UniFi ECS-24-PoE-EU
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Switch
- Model: ECS-24-PoE-EU
- Brand: Ubiquiti
- Ports: 8×2.5GbE PoE+++, 16×10GbE PoE+++, 2×25G SFP28
- Layer: Layer 3 switching
- Mounting: Rack 1U
- Switching capacity: 460 Gbps
- Throughput: 230 Gbps
- Forwarding rate: 342 Mpps
- VLAN support: Up to 1000 VLANs
- MAC address table: 128K
- Buffer: 8MB
- Operating temperature: -5°C to 40°C
- General
- Dimensions442.4 × 43.7 × 496 mm (17.4 × 1.7 × 19.5")
- Port Layout 2.5 GbE RJ458 ports (All PoE+++) (2.5G/1G/100M/10M)
- Port Layout 10 GbE RJ4516 ports (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- Port Layout 25G SFP282 ports (25G/10G/1G)
- Max. PoE OutputUp to PoE+++
- Total PoE AvailabilityShared/Redundant depending on AC input (up to 2,250W shared or 1,050W redundant)
- Redundancy(2) Hot-Swappable PSUs, (4) Hot-Swappable Fans
- Layer 3 SupportYes
- Form FactorRack mount (1U)
- Etherlighting™Yes
- Switching Capacity460 Gbps
- Total Non-Blocking Throughput230 Gbps
- Forwarding Rate342 Mpps
- Supported VLANs1,000
- MAC Address Table Size128,000
- L3 Table Size ARP Entries128,000
- L3 Table Size IPv4 Routes256,000
- Packet Buffer Size8 MB
- Layer 3 FeaturesDHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
- Layer 2 FeaturesLACP Port Aggregation, STP & RSTP, IGMP Snooping & Advanced Configurations, 802.1X Control, MAC-Based ACLs, DHCP Snooping, Rate Limiting, Flow Control, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
- PoE Ports24 × PoE+++ ports
- Max. PoE Wattage per Port90W
- Max. Power Consumption1,50W (excluding PoE output), 2,400W (including PoE output)
- Power Method(2) Universal AC inputs (100–240V AC, 50/60 Hz)
- Power Supply(2) Hot-swappable AC/DC 600W modules
- Supported Voltage Range100–240V AC
- Heat Dissipation511.8 BTU/hr (excluding PoE output)
- Weight Without mounting brackets9.46 kg (20.9 lb)
- Weight With mounting brackets9.56 kg (21.1 lb)
- Enclosure MaterialSGCC steel
- Supported Rack Depth482.6 mm (19") four-post racks, 650–1,000 mm (25.6–39.4") post depth range
- LCM Display1.3" touchscreen
- Fan Method(4) Hot-swappable fan modules
- ESD/EMP ProtectionAir: ±12kV, Contact: ±12kV
- Ambient Operating Temperature-5 to 40° C (23 to 104° F)
- Ambient Operating Humidity10 to 90% noncondensing
- Etherlighting™ Ethernet/SFP28Yes
- LEDs Ethernet/SystemYes
- CertificationsCE, FCC, IC
- NDAA CompliantYes
Tarnija toote parameetrid
Category
Swit
Product code
UBIQECS24POEEU
Brand
Ubiquiti
Supplier's product code
UBIQECS24POEEU
Product ID
U-4615614
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
