Kauba kirjeldus

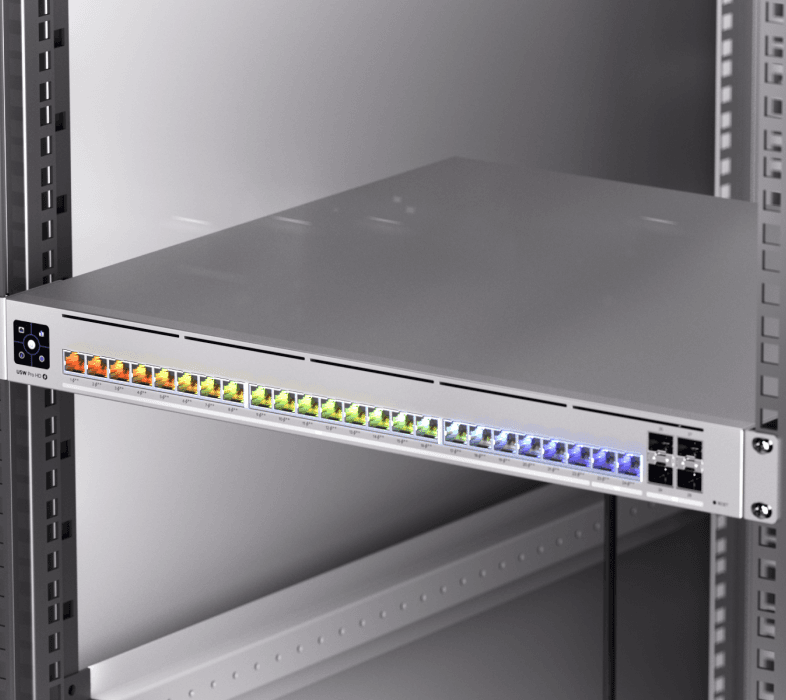

24-port switch Ubiquiti Unifi USW-Pro-HD-24-PoE-EU
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Switch
- Model: USW-Pro-HD-24-PoE-EU
- Brand: Ubiquiti
- Ports: 22 x 2.5GbE RJ45 PoE++, 2 x 10GbE RJ45 PoE++, 4 x 10G SFP+, 2 x 25G SFP28
- Power consumption: 600W
- Network layer: Layer 3

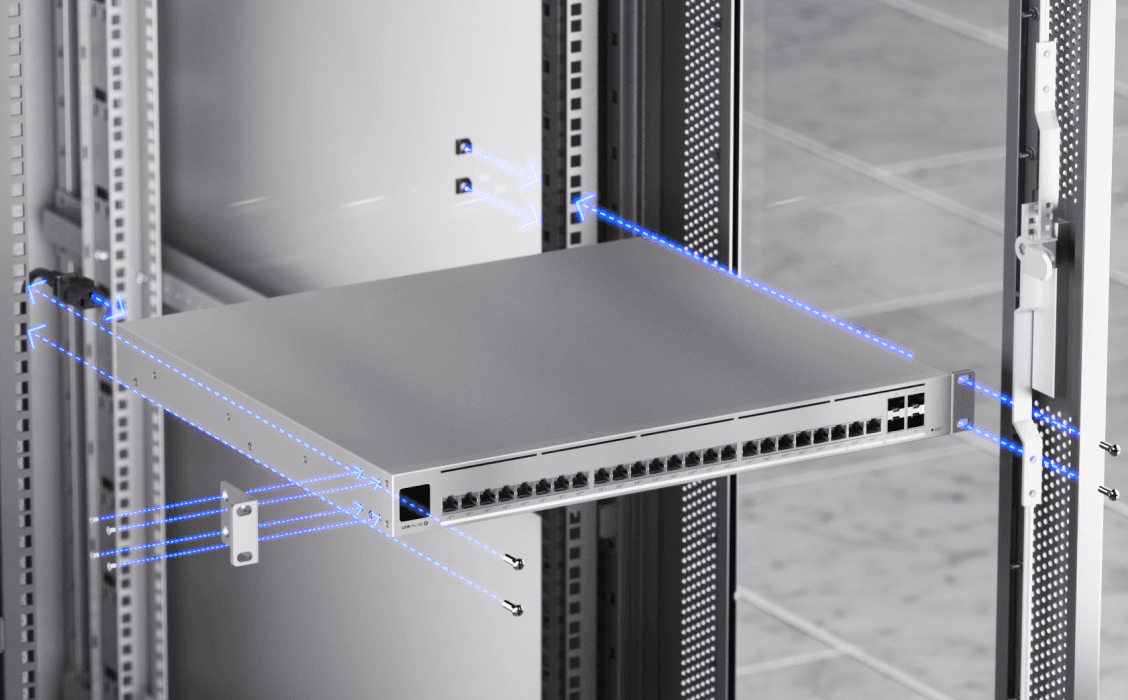

- Mounting: 1U rack mount
- Switching capacity: 230 Gbps
- Throughput: 115 Gbps
- Forwarding rate: 171 Mpps
- VLAN support: Up to 1000
- MAC address table: 32,000
- Buffer: 2 MB
- Operating temperature: -5...40°C
- General
- Dimensions442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
- Port Layout2.5 GbE RJ45: 22 (All PoE++), 10 GbE RJ45: 2 (All PoE++), 10G SFP+: 4, 25G SFP28: 2
- Max. PoE OutputUp to PoE++
- Total PoE Availability600W
- RedundancyDC Power Backup
- Layer 3Yes
- Form FactorRack Mount (1U)
- Etherlighting™Yes
- Switching Capacity230 Gbps
- Total Non-Blocking Throughput115 Gbps
- Forwarding Rate171 Mpps
- Supported VLANs1,000
- MAC Address Table Size32,000
- L3 Table SizeARP Entries: 12,000, IPv4 Routes: 12,000
- Packet Buffer Size2 MB
- Layer 3 FeaturesDHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes
- Layer 2 FeaturesLACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes, Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes, Flow Control: Yes, Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes, MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes, LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes
- PoE PortsPoE++: 24
- Max. PoE Wattage per Port by PSEPoE: 15.4W, PoE+: 32W, PoE++: 64W
- Max. Power Consumption60W (Excluding PoE Output), 660W (Including PoE Output)
- Power Method(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
- Power Input MethodAC input
- Power SupplyAC/DC, internal, 660W
- Supported Voltage Range100—240V AC
- ManagementEthernet: AR
- WeightWithout mounting brackets: 6.2 kg (13.7 lb), With mounting brackets: 6.3 kg (13.9 lb)
- Enclosure MaterialSGCC steel
- Supported Rack Depth600 - 1,200 mm (23.6-47.2")
- LCM Display1.3" Touchscreen
- Ambient Operating Temperature-5 to 40° C (23 to 104° F)
- Ambient Operating Humidity10 to 90% noncondensing
- CertificationsCE, FCC, IC
- Etherlighting™Ethernet: Yes, SFP+: Yes, SFP28: Yes
Tarnija toote parameetrid
Category
Swit
Product code
UBIQUSWPROHD24POEEU
Brand
Ubiquiti
Supplier's product code
UBIQUSWPROHD24POEEU
Product ID
U-4460882
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
