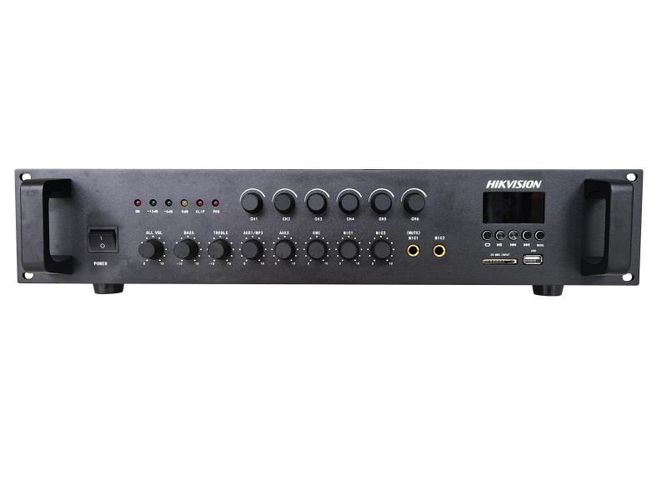

Analog amplifier Hikvision DS-QAE0A120G1-VB6 (120W, Bluetooth, USB)
Tootekood: HIKSOUQAE0A120G1VB
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-11-06 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Analog amplifier Hikvision DS-QAE0A120G1-VB6 (120W, Bluetooth, USB)
Tehnilised andmed
Tarnija toote kirjeldus
- The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input, and 2 microphone inputs; 1 auxiliary output, capable of cascading to the next power amplifier.
- Microphone 1/2, emergency line input, and line 1/2 can be independently adjusted, and it also has total volume control.
- Built in Bluetooth/MP3 function module for content playback on the phone.
- Equipped with six independent volume adjustment output functions.
- Mic 1 and emergency line EMC inputs have the highest priority level, while Mic 1 and EMC have mixed outputs that can strongly cut other audio input signals.
- Mic 2, Line 1, Line 2, and MP3 (Bluetooth/SD/USB) have mixed output.
- Equipped with high and low frequency adjustment function.
- Equipped with advanced short-circuit, overheating, and overload protection functions.
- The circuit is equipped with amplitude limiting function to prevent excessive output of the amplifier and protect the speaker.
- Supports multiple indicator light displays (power, signal).
- By adopting a forced cooling structure with a fan, the machine can operate for a long time.
- Audio
- Frequency Response80Hz-18KHz（±3dB）
- Rated Power120W
- SensitivityLine: -10dBEMC: -10dBMIC: -40dBline：0dB
- THD and SNRTHD≤0.5%SNR≥83dB
- General
- ColorBlack
- Dimension484 × 88 × 360mm
- InstallationCabinet installation
- MaterialIron
- Operating Temperature-10~+ 40°C ,（±2）20%~80% relative humidity
- Package Dimension484 × 88 × 395mm
- Packing ListOne machine and one power cord
- Power200V-230V～, 50/60Hz 5A
- WeightApprox. 9.2 kg (20.28 lb.)
- With Package WeightApprox. 9.5 Kg(20.94 lb.)
- Interface
- Audio InEMC IN × 1,6.5 mm Microphone × 2,AUX IN × 2,Bluetooth,USB2.0,SD card
- Audio OutConstant Voltage Output × 1，110 V COM,Constant Voltage Output × 1，70 V COM,Constant Impedance Output × 1，4~16Ω COM,Partition Output × 6，110 V COM,line out × 1,
- USBUSB2.0
- Volume KnobMIC Volume Knob × 2，Partition 1 Volume Knob × 6，All Volume Knob × 1，Bass Volume Knob × 1，Treble Volume Knob ×1，AUX1/MP3 Volume Knob ×1,AUX2 Volume Knob ×1,EMC Volume Knob ×1
Tarnija toote parameetrid
Product code
HIKSOUQAE0A120G1VB
Brand
Hikvision
Category
Audio equi
Supplier's product code
HIKSOUQAE0A120G1VB
Product ID
U-4748388
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
