LEMONA

Kaitselüliti, Acti 9 iID, 240 V, 25 A, 2-pooluseline

Tootekood: A9R61225
TOP toode
Schneider Electric
Rohkem sarnaseid tooteid
Hind kasutades LEMONA+ kaarti:
ja saa soodustust alates
1.53
(-3%)
49.47

Hinnapiirid

KogusHind KM-ga (tk)
1
51.00
2+
48.45
B2B

Min. kogus: 1

Mõõtühik: tk

Kokku:

51.00

home deliveryTarne kulleriga koju 1-4 tööpäeva

Shipping parcelTarne pakiautomaati 1-4 tööpäeva


Kättetoimetamise tähtajad

lemona shop

Tellimuse töötlemine

Tellimuse töötlemine

Tellimusi töödeldakse ja täidetakse tööpäevadel kell 8.30–17.00. Anname SMS-i ja e-posti teel teada, kui Teie kaup on teele pandud

Kogus laos

Ei ole saadavalEi ole saadaval
Lemona Eesti ladu
Saadaval2 tk
Lemona Vilnius ladu 1
Saadaval2 tk
Lemona Vilnius ladu 2
Saadaval4 tk
Lemona Kaunas ladu
Saadaval2 tk
Lemona Klaipėda ladu
Saadaval3 tk
Lemona Šiauliai ladu
Saadaval>20 tk
Lemona keskladu
home delivery

Kulleriga koju

Kulleriga koju

Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.

Üle 50,00 €

(Tellimused kuni 1000 kgs)

Tasuta

50,00 €-le

(Tellimused kuni 1000 kgs)

5,00 €

Shipping parcel

Kohaletoimetamine DPD pakiautomaatidele

Kohaletoimetamine DPD pakiautomaatidele

Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.

3,50

Kauba kirjeldus

Schneider Electric

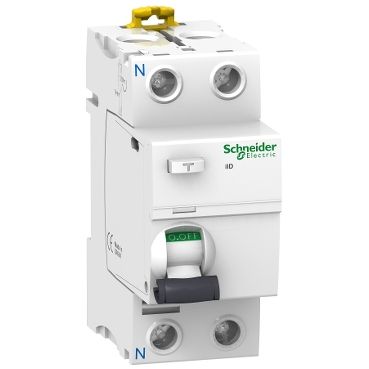

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 25A, A-SI type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 15000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.





Tehnilised andmed

Laokood
383960
Kaal
0.236 kg.
Katkestatavus, kA
0
Katkestuskõver
N/A
Kõrgus, mm
91
Paigaldus
DIN
Laius, mm
36
Pooluste arv
2 P
Praegune, A
25
NomNr
A9R61225
Sügavus, mm
73
Nimipinge DC, V
N/A
Nimipinge vahelduvvool, V
230
Tehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldusTehisintellekti kirjeldus

Tehisintellekti poolt genereeritud tootekirjeldus

Schneider Electric Acti9 iID 240V 25A 2 Pole Circuit Breaker

This Acti9 iID circuit breaker from Schneider Electric is a reliable and efficient solution for electrical protection in various applications. It's categorized as an automatic switch, offering dependable safety and performance.

Key Features and Benefits

  • Brand: Schneider Electric
  • Rated Voltage: 240V
  • Rated Current: 25A
  • Poles: 2
  • Type: Residual Current Circuit Breaker (RCCB)

This circuit breaker provides protection against overcurrents and short circuits, ensuring the safety of your electrical system and connected equipment. Its compact design makes it suitable for various installations.

Applications

The Acti9 iID 2-pole circuit breaker is ideal for a wide range of applications where reliable overcurrent and short-circuit protection is required. It is commonly used in residential, commercial, and industrial settings.

Why Choose This Product?

Choosing the Schneider Electric Acti9 iID circuit breaker offers several advantages:

  • Superior Quality: Schneider Electric is a trusted name in electrical equipment, known for its high-quality products and reliable performance.
  • Safety: This circuit breaker provides essential protection against electrical hazards.
  • Efficiency: Its design ensures efficient operation and minimal energy loss.
  • Ease of Installation: The circuit breaker is designed for easy installation and integration into existing systems.
ParameterValue
BrandSchneider Electric
Product TypeCircuit Breaker
Rated Voltage240V
Rated Current25A
Number of Poles2

Ensure your electrical system is protected with the dependable performance of the Schneider Electric Acti9 iID circuit breaker.


This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:

  • Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
  • Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
  • Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
  • Name or Model Discrepancies: AI may misrepresent the product name or model.

If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
