DALI puutepaneel 4 individuaalsele rühmale koos CCT juhtimisega DT6 Sunricher

Toote kood: SR-2300TS-CCT

DALI puutepaneel 4 individuaalsele rühmale koos CCT juhtimisega DT6 Sunricher

Toote kood: SR-2300TS-CCT

Kaal	0.197 kg.
Garantiiaeg (kuud)	36
Bränd	Sunricher

Kättetoimetamise tähtajad

2024-07-22 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev

Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.

Saadaval

Tarnija ladu

Kontorist kättesaamine

Kontorist kättesaamine Tasuta

Tellimusi töödeldakse ja täidetakse tööpäevadel kell 8.30–17.00.
Kui teie tellimus on kogumiseks valmis, teavitame teid sellest SMS-i ja e-posti teel.

Kogus laos

Ei ole saadaval	Keskladu
Ei ole saadaval	Tallinna kontor

Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)

Üle 25,00 €

(Tellimused kuni 1000 kgs)

Tasuta

25,00 €-le

(Tellimused kuni 1000 kgs)

4,50 €

Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)

Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.

3,50 €

Kauba kirjeldus

Kaal	0.197 kg.
Garantiiaeg (kuud)	36
Bränd	Sunricher

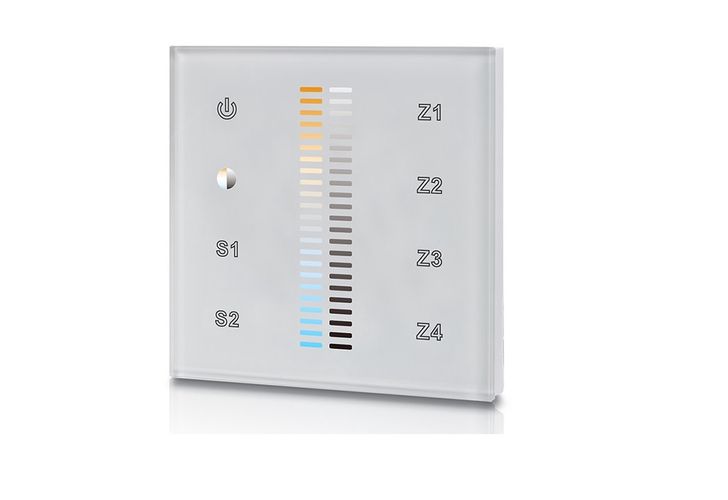

The DALI master SR-2300TS-CCT is a touch DALI controller which adopts high strength and ultra sensitive tempered glass panel to offer accurate and fast color temperature and brightness adjustment functions to control dual color LEDs, the LED controller complies to IEC 62386-102, IEC 62386-207, IEC 62386-209 and can be compatible with DALI products from other international corporations. The DALI master can control up to 4 light zones with 2 scenes saved for each zone. For DT6 version, each light zone can control 2 DALI addresses, and enables to set starting DALI address. For DT8 version, each light zone can control 1 DALI group, enables to set start DALI group number and DALI scene number.
This DALI controller is available with both 100-240VAC input and 12-24VDC input versions. AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. Max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
Key Features
Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation.
Touch interface operation design, easy to use.
With bus detective function, one channel DALI bus can install multiple controllers.
12-24VDC input and 100-240VAC input versions optional.
AC input version with built-in 100mA DALI power supply to power up to 50 DALI ECG.
AC input version can also be powered by DALI bus while not connected to AC mains.
Max. 100 DALI ECG can be controlled by 4 AC version DALI panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
Up to 4 light zones for dimming and CCT control. Each zone can be 2 DALI address (DT6) or 1 DALI group (DT8).
Can save 2 scenes.
Supports DT8 Device Commands.
Supports DT8 Color Type Tc.
Compatible with DALI Masters That Support DT8 Commands.
Easy to Select and Control Designated DALI Groups & Scenes (DT8) or DALI Addresses (DT6).
Smooth & Fine Color Temperature Adjustment.
Suitable for CCT color LEDs.
EU & US Size Available, Easy Installation Into Existing Wall Box
