ESR SCR multimeeter LCR-T7 transistoride, kondensaatorite ja muude komponentide jaoks

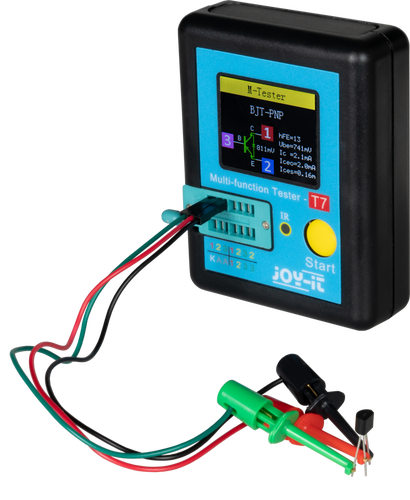

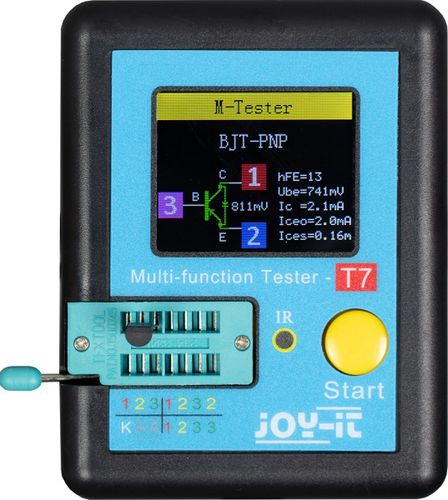

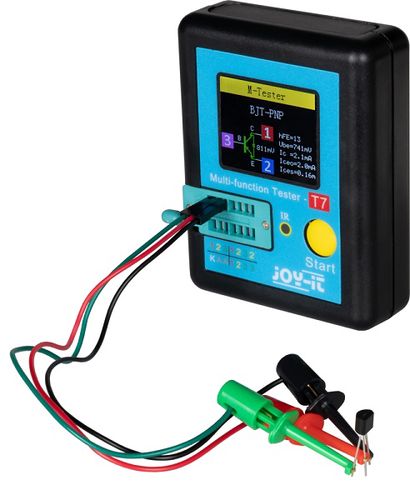

Component tester JT-LCR-T7

Our Joy-iT LCR-T7 meter offers you a wide range of functions for an attractive price. With the help of our LCR meter you can measure the inductances ( L ) of coils, capacitances ( C ) of capacitors and their resistances ( R ) as loss. The automatic component recognition of our meter can recognise electronic components ( diodes, Z-diodes, double diodes, resistors, capacitors, inductors, thyristors, triacs, field effect transistors, bipolar transistors and batteries ) and distinguish for example between different types of transistors ( NPN or PNP ).  The measurements are started automatically by simply pressing a button. With the integrated infrared decoder, even infrared signals can be decoded and shown on the display in waveform and hexadecimal code. Thanks to the integrated 350mAh battery, the measuring device can be used in mobile applications. The battery can be recharged with the help of the included microUSB cable and various USB power sources (e.g. 5V mains adapter, power bank, PC and much more).

Technical data:

Measurements	resistor, capacitor, inductor, thyristor, TRIAC, (double) diode, Z diode, field effect transistor, bipolar transistor, infra-red decoder
Capacity	25 pF - 100 mF
Resistance	0.01Ω - 50 MΩ
Inductance	0.01 mH - 20 H
Battery	0.1 - 4.5 V, 300 mAh
Z diode (breakthrough)	0.01 - 30 V
Z diode	0.01 - 4.5 V
Diode	UF < 4.5 V
Thyristor/TRIAC	IGT < 6 mA
Display	3.5-inch TFT LCD (160x128p)
Power suply	rechargeable lithium-ion battery (3.7 V/350 mAh)
Dimensions	90 x 80 x 27 mm

Our Joy-iT LCR-T7 meter offers you a wide range of functions for an attractive price.
With the help of our LCR meter you can measure the inductances ( L ) of coils, capacitances ( C ) of capacitors and their resistances ( R ) as loss.
The automatic component recognition of our meter can recognise electronic components ( diodes, Z-diodes, double diodes, resistors, capacitors, inductors, thyristors, triacs, field effect transistors, bipolar transistors and batteries ) and distinguish for example between different types of transistors ( NPN or PNP ).
The measurements are started automatically by simply pressing a button.
With the integrated infrared decoder, even infrared signals can be decoded and shown on the display in waveform and hexadecimal code.
Thanks to the integrated 350mAh battery, the measuring device can be used in mobile applications.
The battery can be recharged with the help of the included microUSB cable and various USB power sources (e.g. 5V mains adapter, power bank, PC and much more).

Technical data:

Measurable components: Resistor, capacitor, inductor, thyristor, triac, (double) diode, Z-diode, field effect transistor, bipolar transistor, infrared decoder

Display type: 3.5" TFT LCD (160 x 128p)

Special features: Automatic calibration, One key operation

Built-in battery: Lithium Ion rechargeable, 3.7 V, 350 mAh

Capacitance: 25 pF - 100 mF

Resistance: 0.01 Ω - 50 MΩ

Inductance: 0.01 mH- 20H

Battery: 0.1 - 4.5 V, 300 mAh

Z-diode breakdown voltage: 0.01 - 30 V

Z-diode: 0.01 - 4.5 V

Diode: UF < 4.5 V

Thyristor / Triac: IGT < 6 mA
